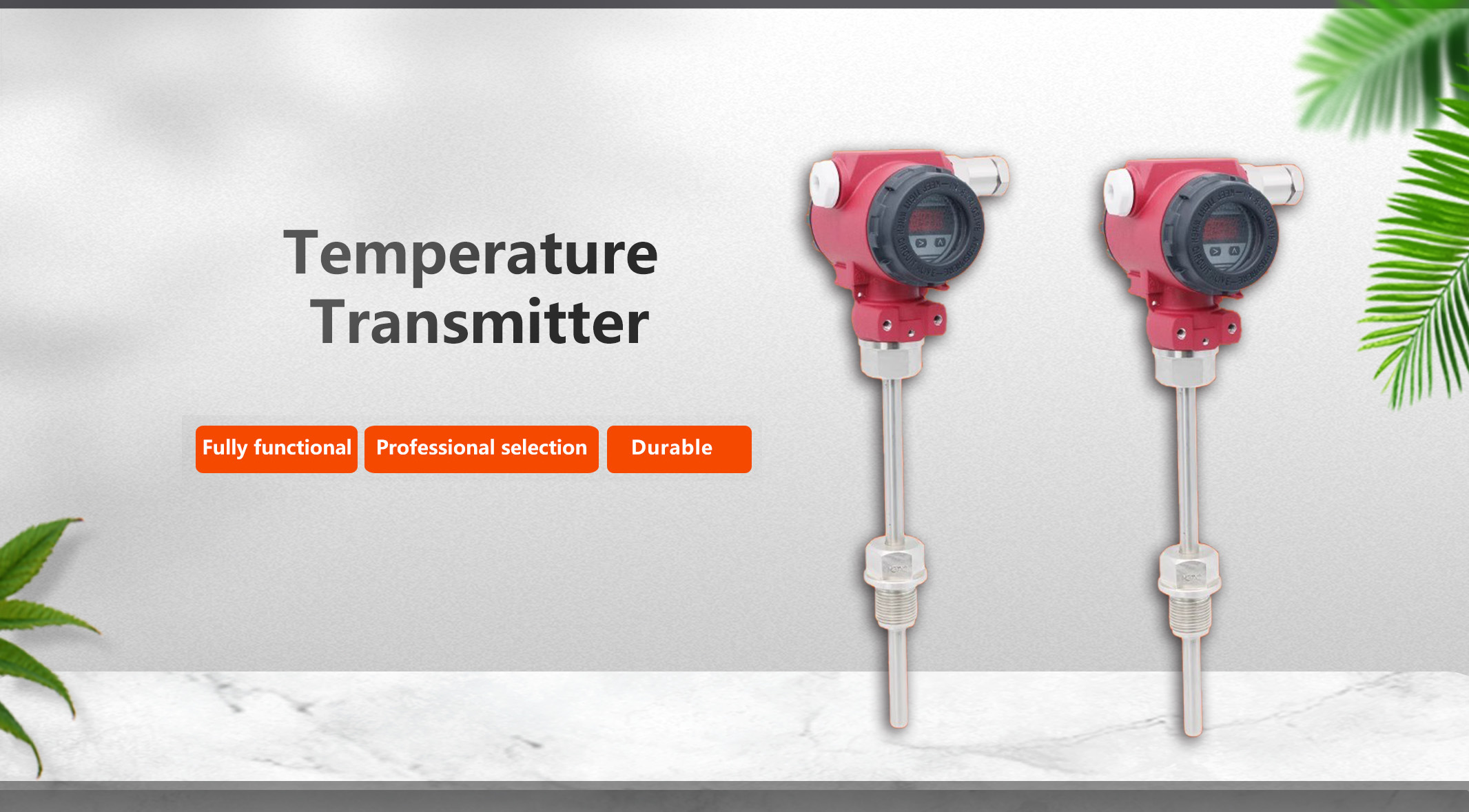

The ZNC-W102 integrated temperature transmitter is a compact, field-mounted device that combines a sensor and transmitter into one unit. It measures temperatures of liquids, steam, and gases ranging from -200°C to 1600°C in industrial processes. The transmitter converts temperature readings into a 4-20 mA output signal, proportional to the thermocouple or RTD signal, and sends it to display, recording, or control instruments.
Ideal for diverse applications including metallurgy, petroleum, chemical, power, light industry, textiles, food, defense, and research, this next-generation transmitter is designed for accuracy and reliability. Its compact design fits within the thermocouple or RTD wiring, eliminating the need for expensive compensation wires and improving signal integrity over long distances. The transmitter is durable, with a silicone rubber seal that makes it resistant to shock and moisture, making it suitable for harsh environments.
Product Features
Linearity Correction: Ensures accurate temperature measurement by compensating for non-linearity of the sensor.
Automatic Cold Bond Compensation: The thermocouple transmitter includes temperature compensation at the cold end to improve accuracy.
High Shock Resistance: It uses pressure reed type temperature sensing elements, providing excellent resistance to vibrations and impacts.
Wide Measurement Range: Supports temperatures above 1000°C (for thermocouples), covering a wide range of industrial applications.
High Measurement Accuracy: Ensures stable and accurate temperature readings for critical process control.
High Mechanical Durability: Built with high strength materials for exceptional pressure resistance.
Quick Response Time: Short reaction time, allowing real-time temperature monitoring and quick adjustments.
Technical Parameters
Supply Voltage: 24VDC
Output signal: 4-20mA output, RS485 protocol
Process Connection: M27×2 or customized size
Instrument Material: Cast aluminum or stainless steel head
Probe Material: 304 or 316 Stainless Steel
Display Type: 4-digit LED display (optional, may not have display)
Ambient Temperature: -20°C to 60°C
Medium Temperature: Compatible with 8 thermocouples and 2 RTDs
Insert Length: Standard 50mm (custom sizes available)
