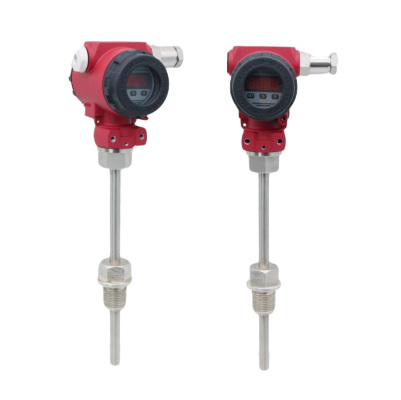

The Integrated Temperature Transmitter is a high-precision, compact field-mounted device that seamlessly integrates a temperature sensor and transmitter. Designed for industrial process temperature measurement, it supports a wide range from -200°C to 1600°C, making it ideal for liquids, steam, and gases. The transmitter converts temperature readings into a 4-20 mA analog output, ensuring accurate and stable signal transmission to displays, recorders, and control systems.
This high-performance temperature transmitter is widely used in metallurgy, petroleum, chemical processing, power plants, textiles, food production, defense, and scientific research. Featuring an integrated thermocouple or RTD wiring, it eliminates the need for costly compensation wires, enhances signal integrity over long distances, and ensures long-term durability in harsh industrial environments. With a silicone rubber seal, the device is shock-resistant, moisture-proof, and built for reliability in demanding conditions.
Product Characteristics
Linearization Correction: Ensures accurate temperature measurement by compensating for sensor non-linearity.
Automatic Cold Junction Compensation: The thermocouple transmitter includes built-in cold-end temperature compensation for improved precision.
High Shock Resistance: Uses pressure reed-type temperature sensing elements, providing excellent vibration and impact resistance.
Wide Measurement Range: Supports temperatures exceeding 1000°C (for thermocouples), covering a broad spectrum of industrial applications.
High Measurement Accuracy: Ensures stable and precise temperature readings for critical process control.
Strong Mechanical Durability: Built with high-strength materials for exceptional pressure resistance.
Fast Response Time: Short reaction time enables real-time temperature monitoring and quick adjustments.
Technical Parameters
Supply Voltage: 24VDC
Output Signal: 4-20mA output, RS485 protocol
Process Connection: M27×2 or customizable size
Instrument Material: Head in cast aluminum or stainless steel
Probe Material: 304 or 316 stainless steel
Display Type: 4-digit LED display (optional, can be without display)
Environmental Temperature: -20°C to 60°C
Medium Temperature: Compatible with 8 thermocouples and 2 RTDs
Insertion Length: Standard 50mm (custom sizes available)
