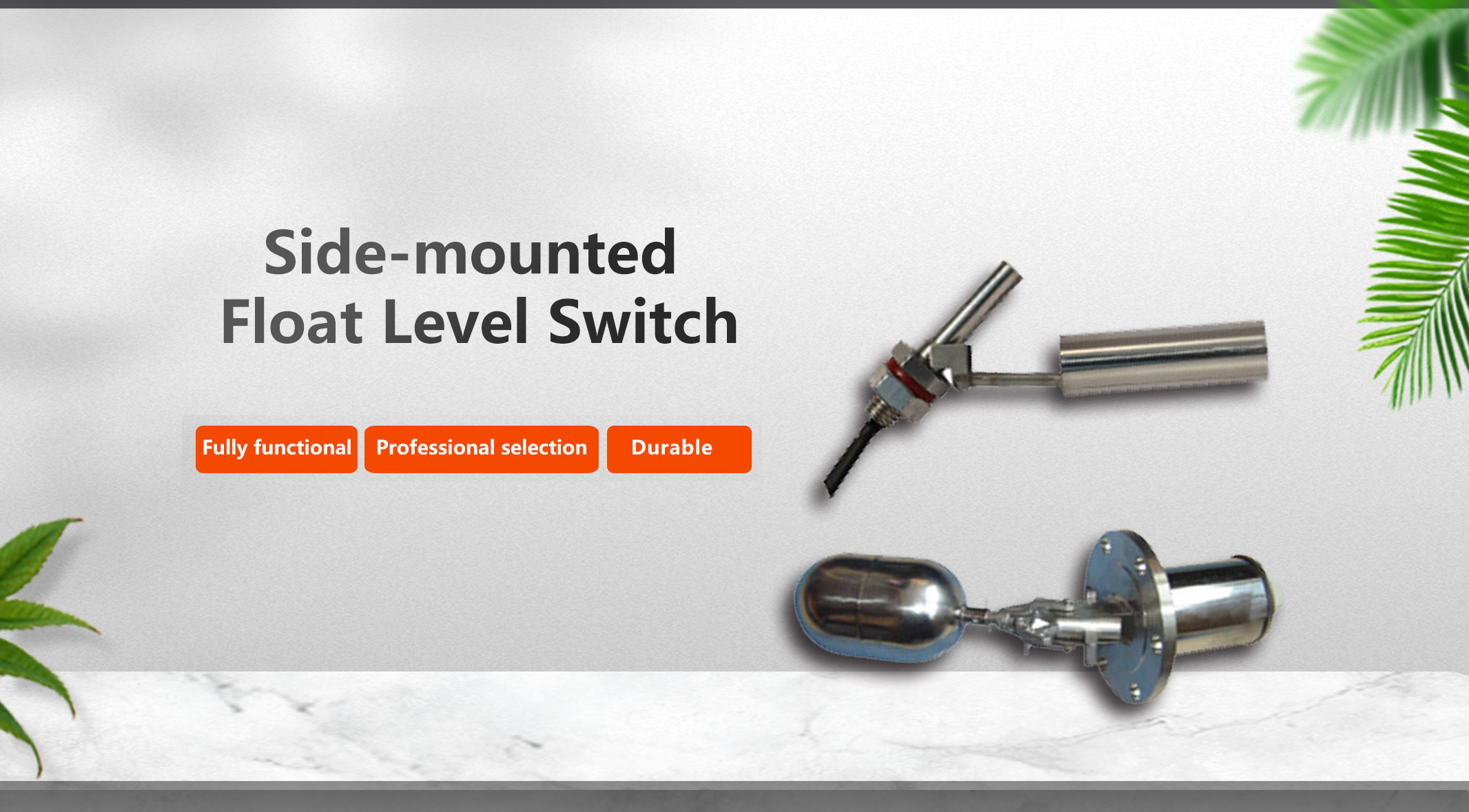

The side-mounted float switch operates using a float that rises or falls with the liquid level. When the float reaches approximately 20 degrees from the horizontal plane due to buoyancy, it causes the lever arm to swing. This movement actuates a microswitch inside the junction box, either opening or closing the circuit.
In operation, as the float moves up and down, the magnetic reed switch inside the junction box is influenced by the magnet at the end of the lever arm, causing a change between the "NC" (Normally Closed) and "NO" (Normally Open) contacts. Similarly, this principle is applied to the microswitch, where the interaction between the magnets at the front of the microswitch and the end of the lever arm results in the switching action between "NC" and "NO" positions.
Product Features:
Flexible Installation Options: Can be installed horizontally on the side wall or vertically on the top of the tank, offering versatility for various tank
configurations.
Wide Voltage Support: Compatible with 220VAC and 24VDC circuits, ensuring wide application possibilities.
Isolated Control System: The control unit is completely isolated from the liquid medium, avoiding direct contact to improve durability and safety.
Variety of Materials and Connections: Available in a wide range of materials and connection methods, ensuring their suitability for different environmental conditions.
Durable and Compact Design: Lightweight and space-efficient, designed for extended operation without compromising performance.
Technical Parameters:
Maximum Pressure:
oStandard: 10 MPa
Compact: 10 bar
Medium Temperature: Maximum: 350°C
Medium Density: ≥0.75 g/cm³
Output Signal: Switching Output
Contact Capacity:
Compact: 220VAC, 5A, SPDT
oStandard: 220VAC, 5A, SPDT
High Temperature: 220VAC, 1A, SPDT
o High Temperature Dissipation: 220VAC, 5A, SPDT
oCorrosion Resistant: 220VAC, 5A, SPDT
Protection class: IP65
Degree of Explosion Protection: Ex d II BT6, Ex d II CT6
Material Options: SUS304, SUS316, PP Available
Process Connection: Threaded or flanged connections available
