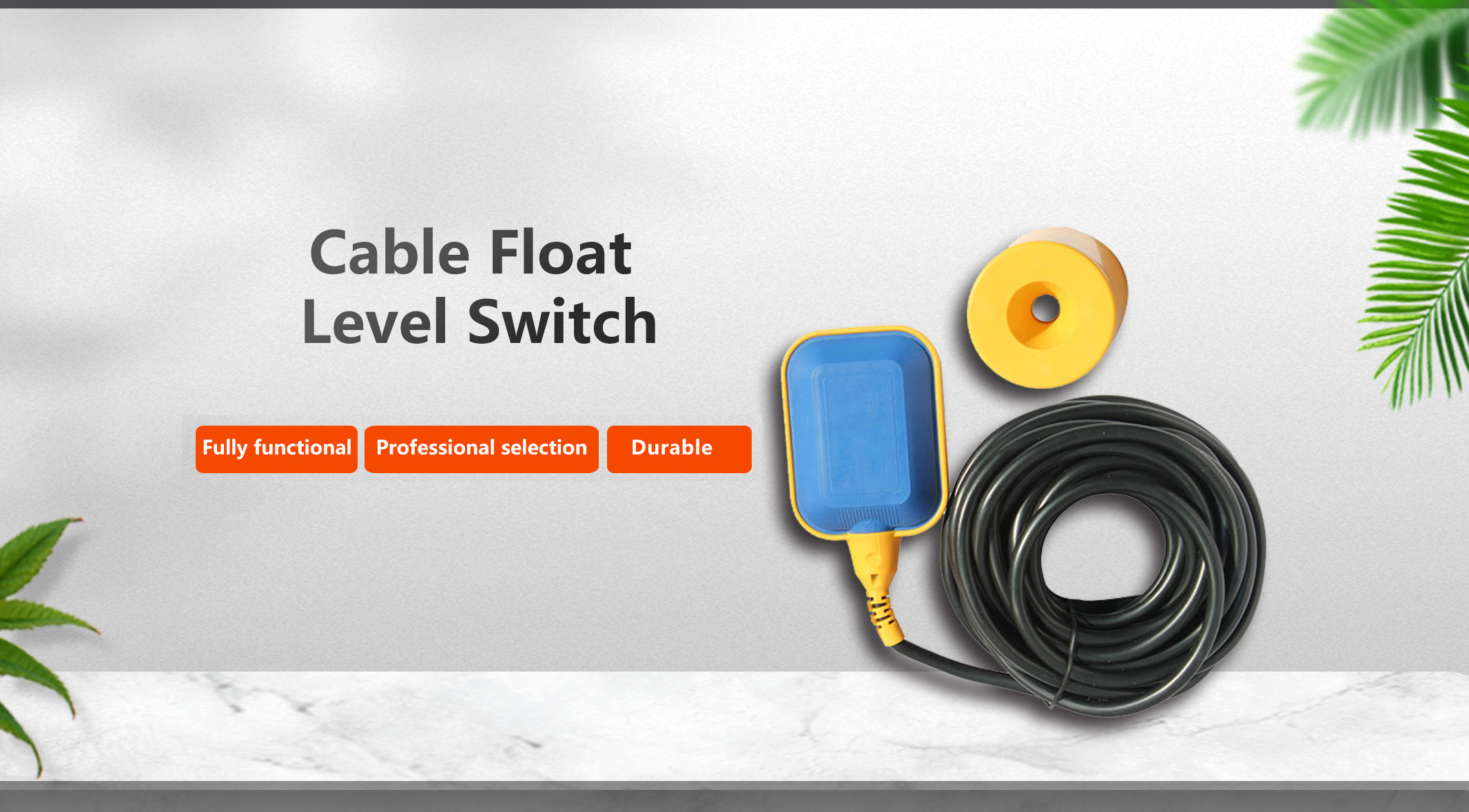

The cable float level switch is suitable for use with a variety of liquids, including mildly corrosive ones. The cable length can be customized to any required length. The S-type cable float level switch features a metal float and uses a mercury switch for its contact parts. It is known for its high temperature resistance and durable, flexible cable.
Its simplicity, reliability, and cost-effectiveness make it a preferred choice for level control in large containers. It is particularly popular in municipal water supply and drainage, fire protection, and water treatment industries.
Product Features:
Efficient and Reliable: Designed to manage liquid levels in tanks, channels or wells.
Automatic Regulation: Provides easy operation and convenient installation, with maintenance-free performance.
Eco-friendly: Non-toxic and resistant to wastewater, making it ideal for various domestic and industrial applications such as swimming pools,
oil tanks and containers containing weak acids or weak alkalis.
Serial Connection Capability: Can be connected in series for improved control:
o Two controllers can be connected in series (one in the water tank and one in the well) to prevent dry operation and protect the pumps.
Three serially connected controllers (one in the water tower, one in the filter tank, and one in the river or well) allow simultaneous control of two
pump systems.
Technical Specifications:
Rated Current and Voltage: 10(8A)250V~/10(4A)380V
Operating Temperature: 0℃ < Water Temperature ≤ 80℃
Control Range: ≥0.2m
Useful Life: ≥50,000 cycles
Cable Length: Standard 4m (customizable lengths and special environments available upon request)
