The rod float level switch is a reliable and easy-to-use level controller with a simple design. It can achieve multi-point control with a single unit. Known for its long lifespan, fast response, and strong load impact resistance, this switch operates using magnetic forces without mechanical connections, ensuring dependable performance.
Inside a sealed metal or plastic tube, one or more reed switches are installed. A hollow float, containing ring magnets, moves within the tube. The float's magnets interact with the reed switches to trigger switching actions as the float rises or falls within a specified range.

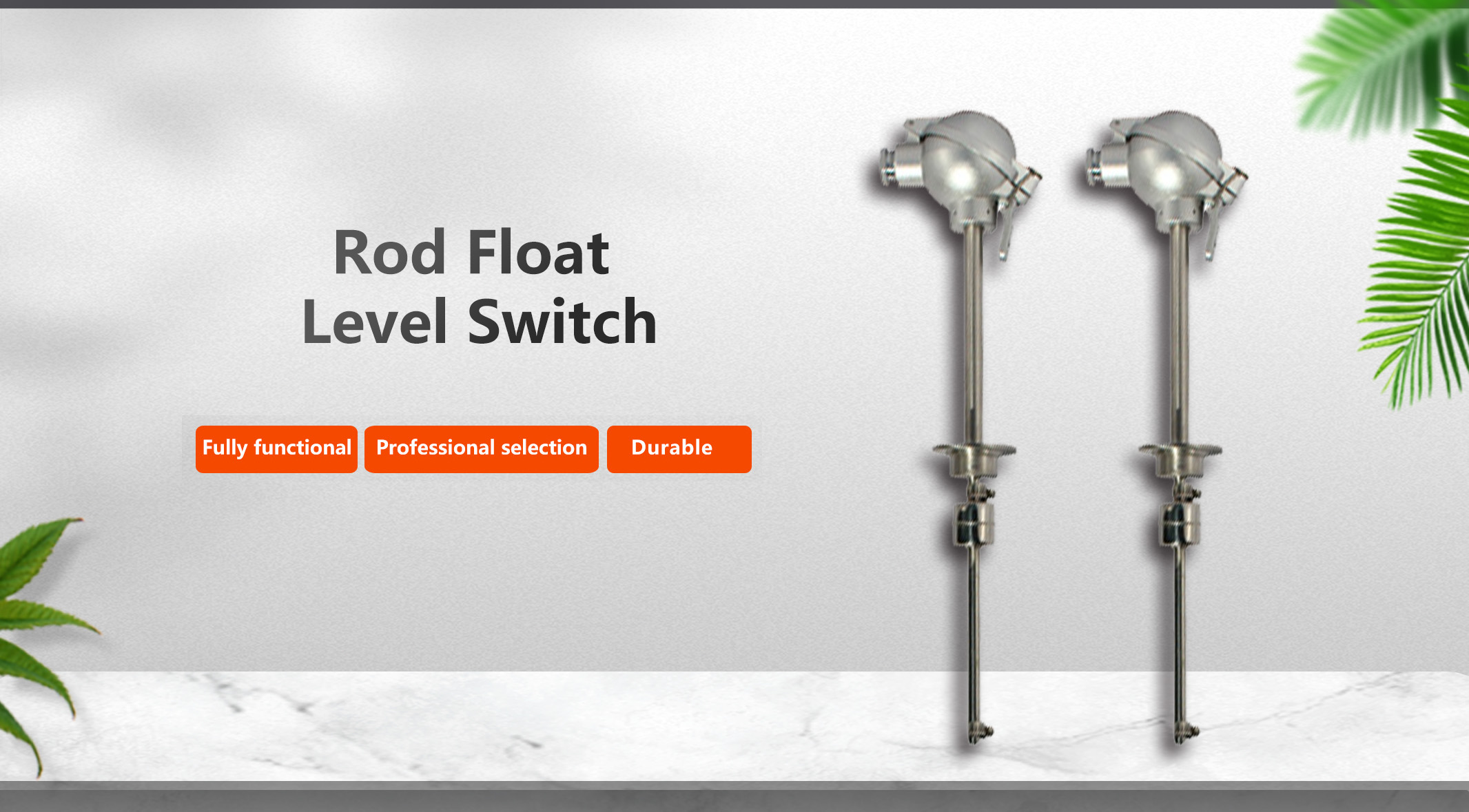

Level Switch with Rod Float
Product Features:
High Quality Components: All components are equipped with sheet switches from a reliable factory in Russia, ensuring superior quality and
performance.
Flexible Compatibility: Compatible with 220VAC and 24VDC circuits, offering versatile use for different systems.
Reliable Operation in Extreme Environments: Designed to operate reliably in high temperature and high pressure environments, making it ideal for demanding industrial applications.
Lightweight and Compact: The unit is lightweight and compact, with the ability to achieve multi-point control and remote monitoring according
to specific needs.
Customizable Solutions: Available in a variety of materials and process connection methods, providing tailor-made solutions to meet various
application requirements.
Technical Parameters:
Maximum pressure: 20 bar
Medium Temperature: Maximum 250°C
Medium Density: ≥ 0.75 g/cm³
Output: Switching output, selectable contact capacity: 24VDC, 0.5A SPDT or 220VAC, 0.5A SPDT
Protection class: IP65
Material: SUS304, SUS316, PP available
Process Connection: Threaded or flanged connections available
