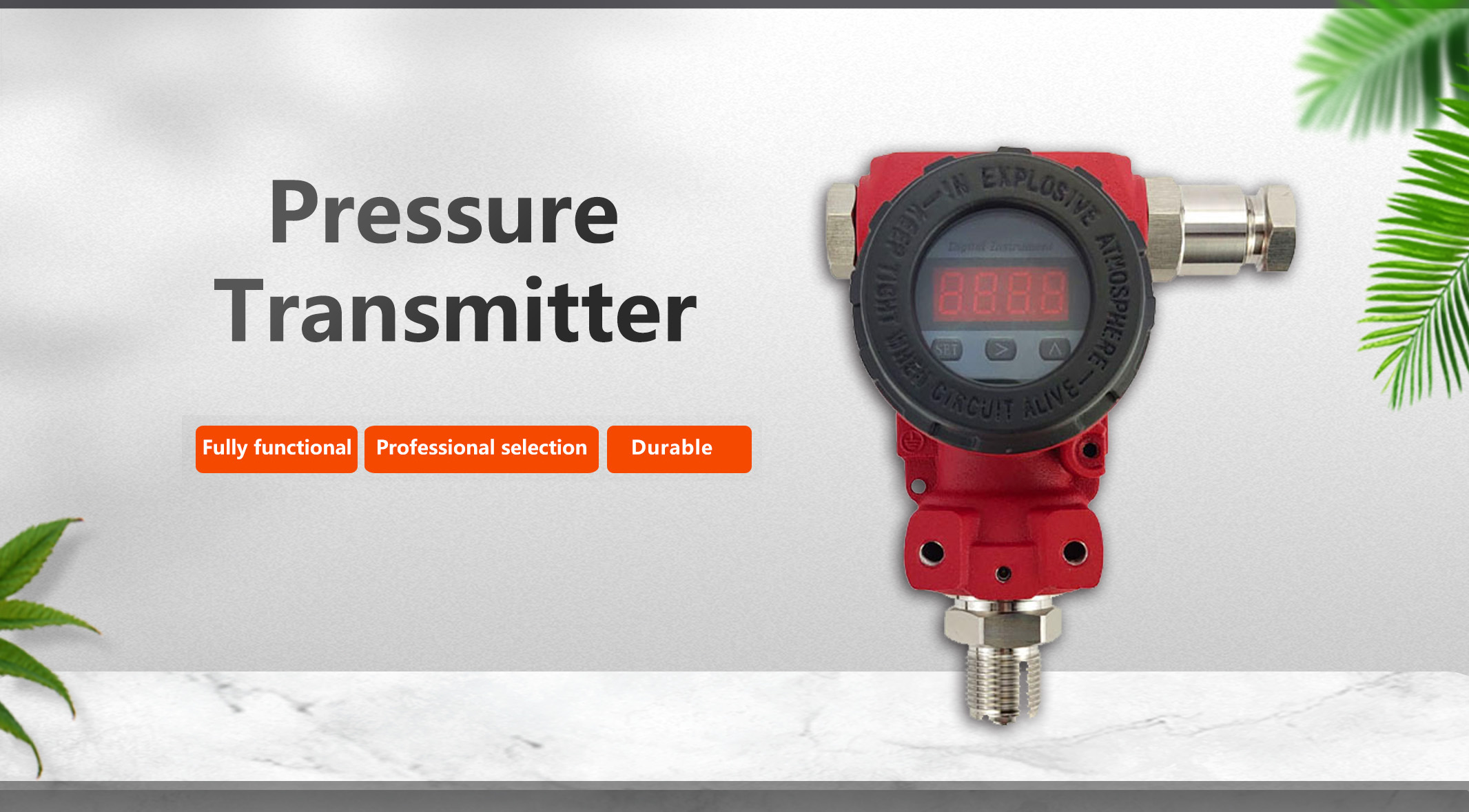

ZNC-3051-Y pressure transmitter is a kind of pressure transmitter with dexterous appearance, stable measurement and high accuracy. There are three kinds of pressure measurement methods: gauge pressure and absolute pressure, negative pressure. It adopts the most advanced diffusion silicon sensor and its manufacturing process to ensure the best quality performance and long-term stability. Free on-site configuration through the three keys, you can adjust the zero point, full scale on-site. And can be installed with high contrast with backlight LCD display, and a variety of process connectors.
Product Usage

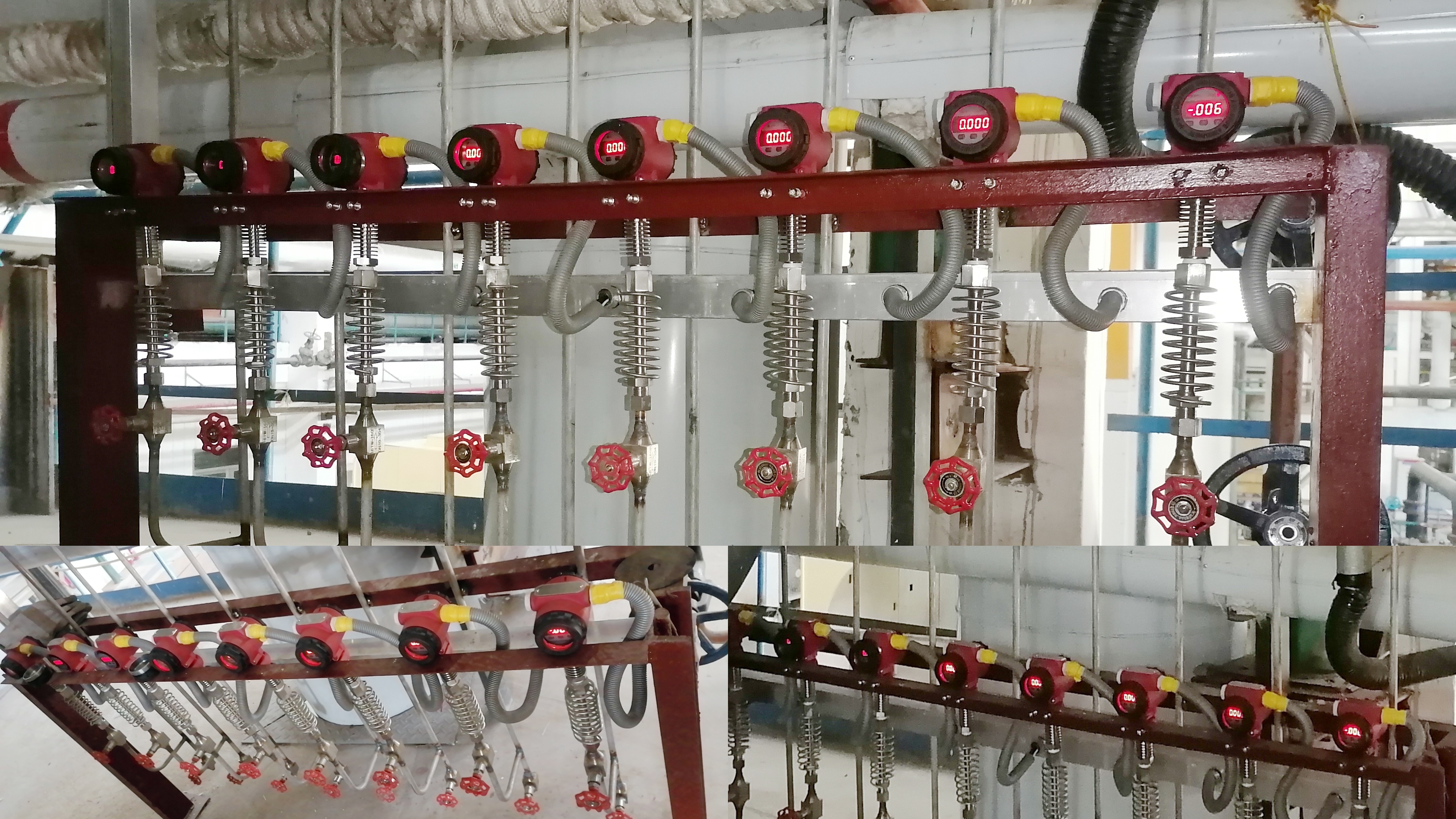

Commonly used in a pressure detection, transmission instrumentation, widely used in a variety of industrial automation environment, involving water conservancy and hydropower, railroad transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries
Product Characteristics
Easy Installation: Can be installed directly or mounted with a bracket.
High Performance: Offers high accuracy, stability, and reliability with strong resistance to frequency interference.
Versatile Pressure Measurement: Supports gauge pressure, absolute pressure, and negative pressure measurements.
Adjustable Settings: Zero point adjustment and customizable measurement range.
Network Compatibility: Supports integration into networked systems for remote monitoring and control.
Measurement Parameters
Measurement Range: -0.1MPa~100MPa
Accuracy Class: 0.075%, 0.1%, 0.2%, 0.5%
Measuring Medium: Liquid, gas, or vapor
Operating Power: External power supply 24VDC ±15%, Ripple ≤±5%
Long-term Stability: Better than 0.1%
Output Signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, others
Diaphragm Material: SS316L (Standard)
Medium Temperature: -20℃～350℃
Load Resistance: ≤ 1000Ω
Process Connection Material: SS304, SS316, PTFE

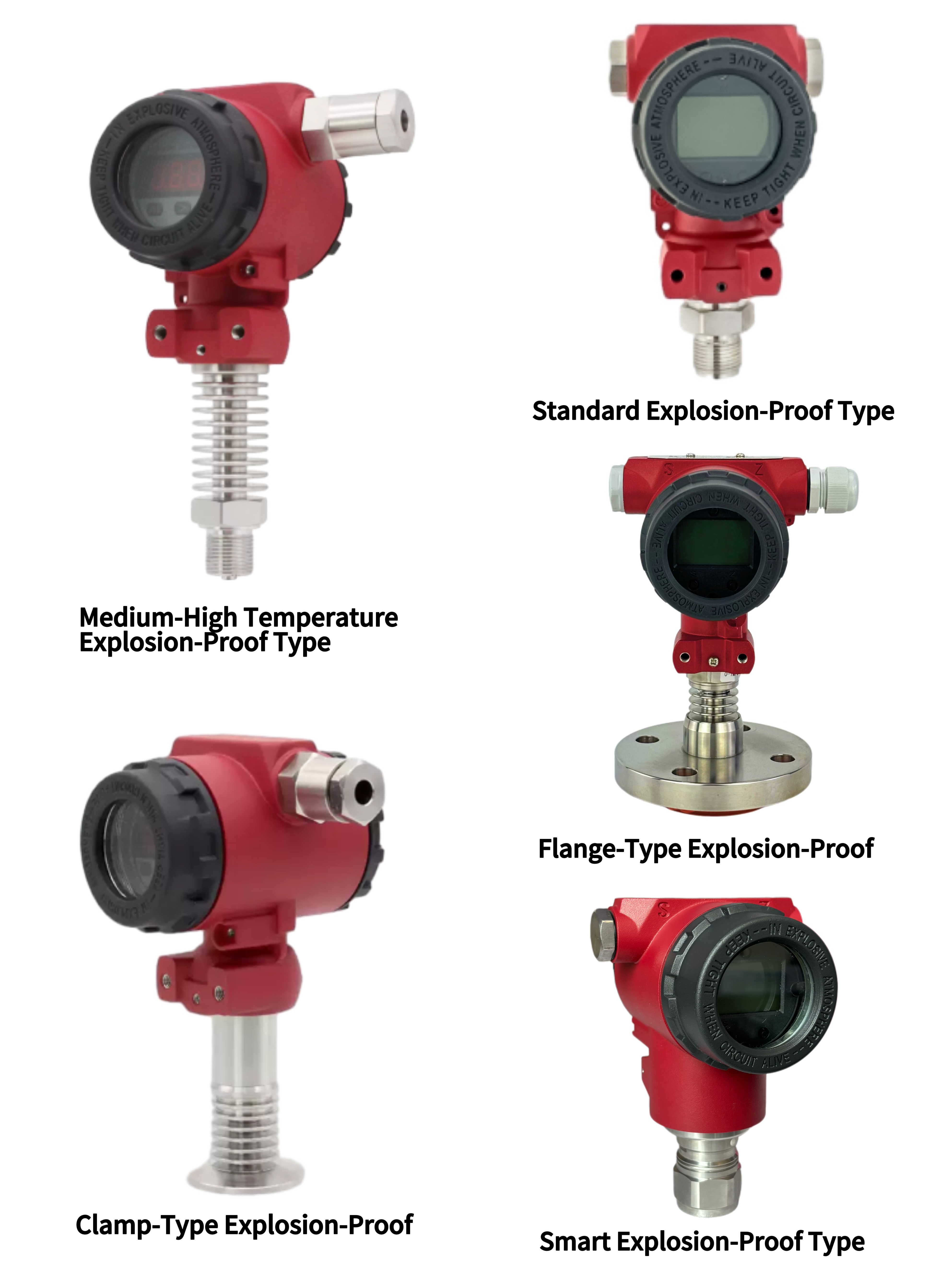

Table Header Type: Display, Explosion-proof
Protection Class: IP65
