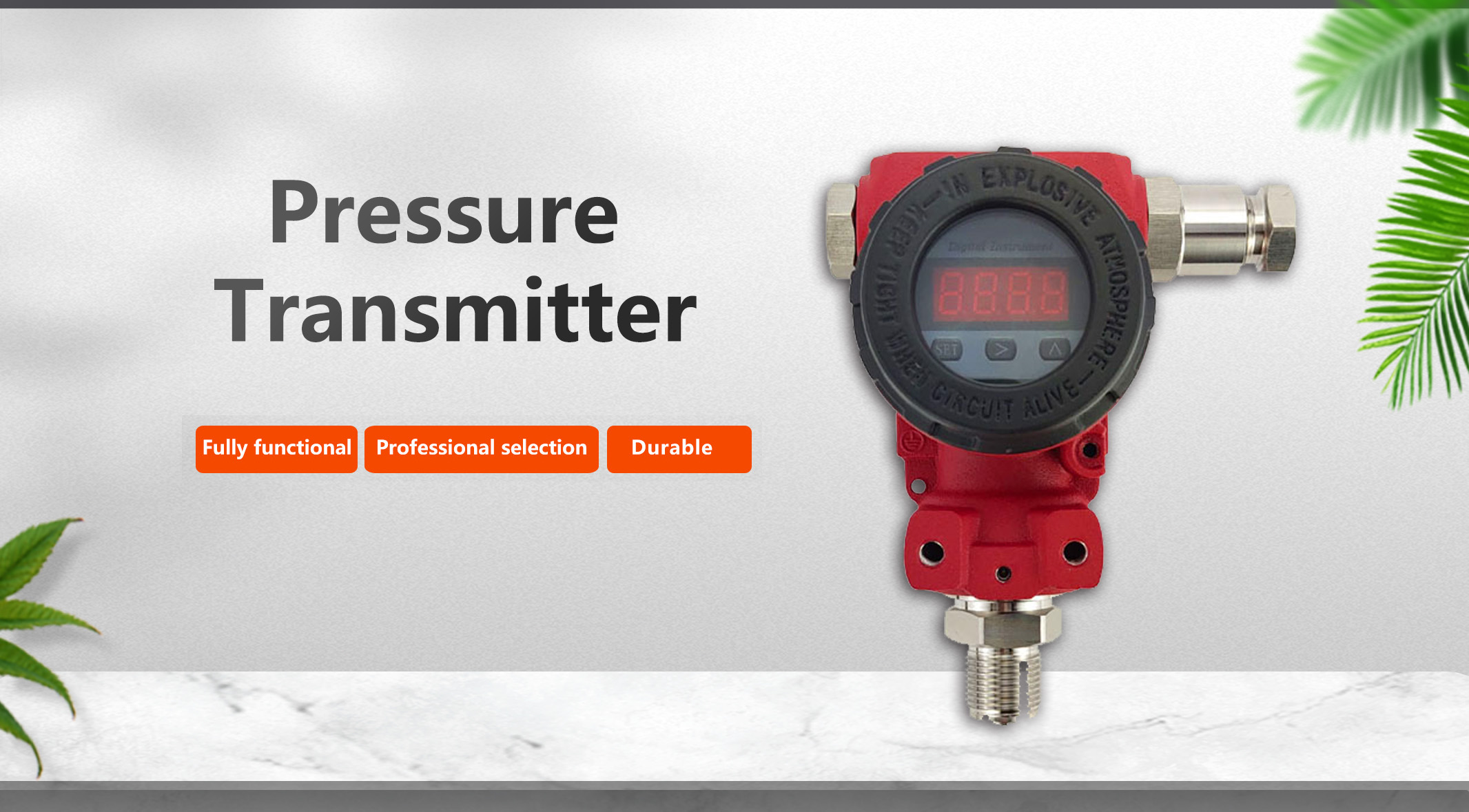

The smart pressure transmitter supports both gauge and absolute pressure measurement, utilizing advanced diffusion silicon and ceramic sensors. It allows easy on-site configuration via a three-button interface and features a high-contrast, backlit LCD display. The transmitter delivers a 4~20mA signal with HART protocol compatibility.
With 316L stainless steel or ceramic diaphragms in contact with the medium, it is designed for harsh, high-temperature, or sanitary environments, ensuring long-term stability and high-precision measurement.
Product Features
Easy Installation: Can be installed directly or mounted with a stand.
High Performance: Offers high accuracy, stability and reliability, with great resistance to frequency interference.
Versatile pressure measurement: Compatible with gauge, absolute and negative pressure measurement.
Customizable Adjustments: Zero point adjustment and configurable measuring range.
Network Compatibility: Compatible with network systems for remote monitoring and control.
Measurement Parameters
Measuring Range: -0.1MPa~100MPa
Accuracy Class: 0.075%, 0.1%, 0.2%, 0.5%
Measuring medium: liquid, gas or steam
Operating Power: 24VDC external power supply ±15%, ripple ≤±5%
Long-term stability: better than 0.1%
Output signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, other options available
Diaphragm Material: SS316L (Standard)
Medium Temperature: -20℃~350℃
Load resistance: ≤ 1000Ω
Process Connection Material: SS304, SS316, PTFE
Table Header Type: Screen, explosion-proof
Protection class: IP65
