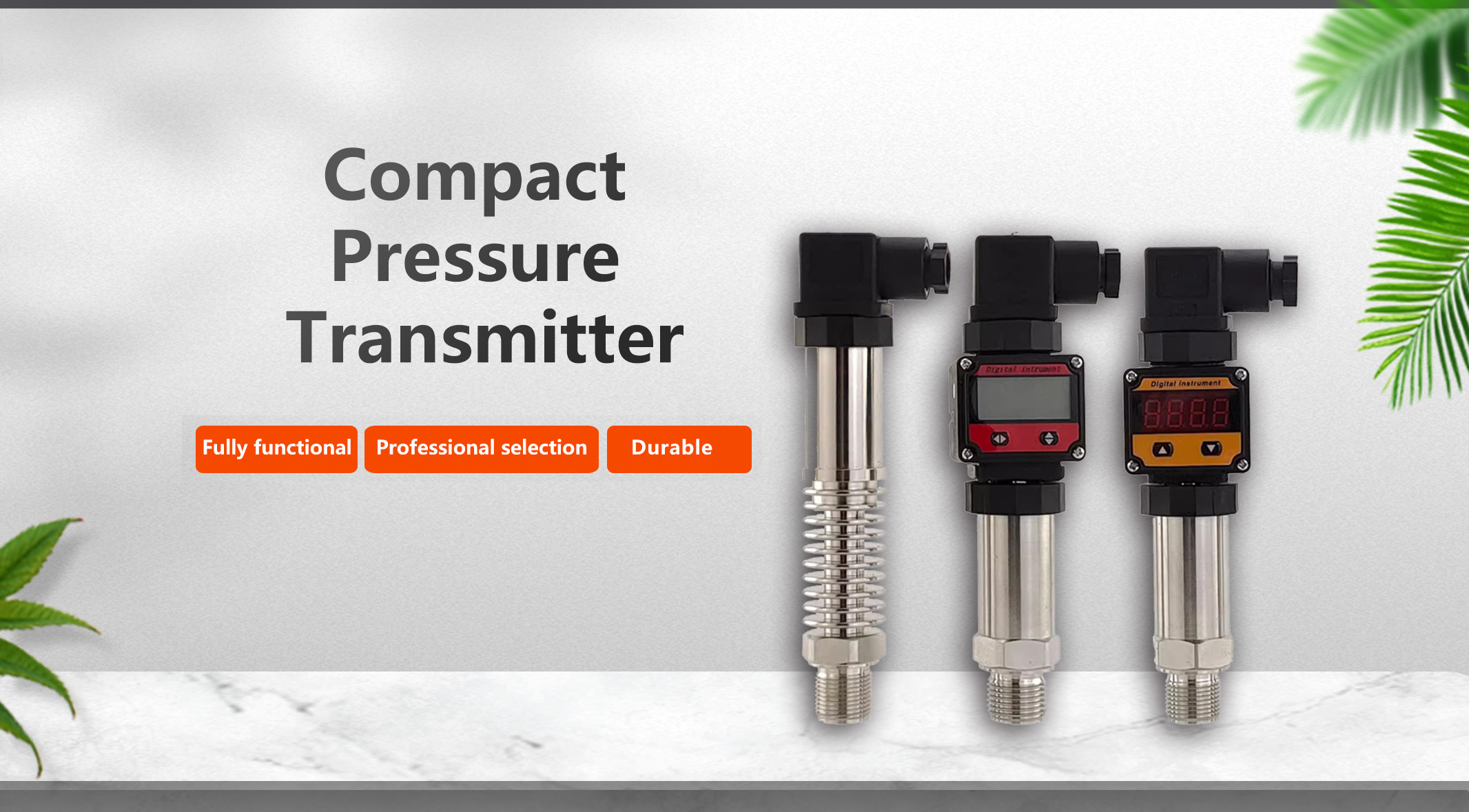

The compact pressure transmitter features a German Hirschmann connector and an optional on-site display. It is built using ceramic piezoresistive and diffusion silicon pressure sensor technologies, combined with high-precision silicon sensors, integrated electronics, and a stainless steel housing. Its compact design allows for easy installation in space-constrained environments, with output supporting HART protocol.
Product Features
Easy Installation: It can be installed directly or mounted with a bracket.
High Performance: It offers high precision, stability, and reliability, with strong resistance to frequency interference.
Versatile Pressure Measurement: Compatible with gauge, absolute, and vacuum pressure measurements.
Customizable Adjustments: Configurable zero adjustment and measurement range.
Compatibility with Networks: Compatible with network systems for remote monitoring and control.
Measurement Parameters
Measurement Range: -0.1MPa~100MPa
Class of Precision: 0.075%, 0.1%, 0.2%, 0.5%
Measurement Medium: Liquid, gas, or vapor
Operational Power Supply: External 24VDC ±15% power supply, ripple ≤±5%
Long-term stability: better than 0.1%
Output Signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, other options available
Diaphragm Material: SS316L (Standard)
Medium Temperature: -20℃～350℃
Load Resistance: ≤ 1000Ω
Connection Process Material: SS304, SS316, PTFE
Table Header Type: Explosion-proof, for screens
Protection Class: IP65
