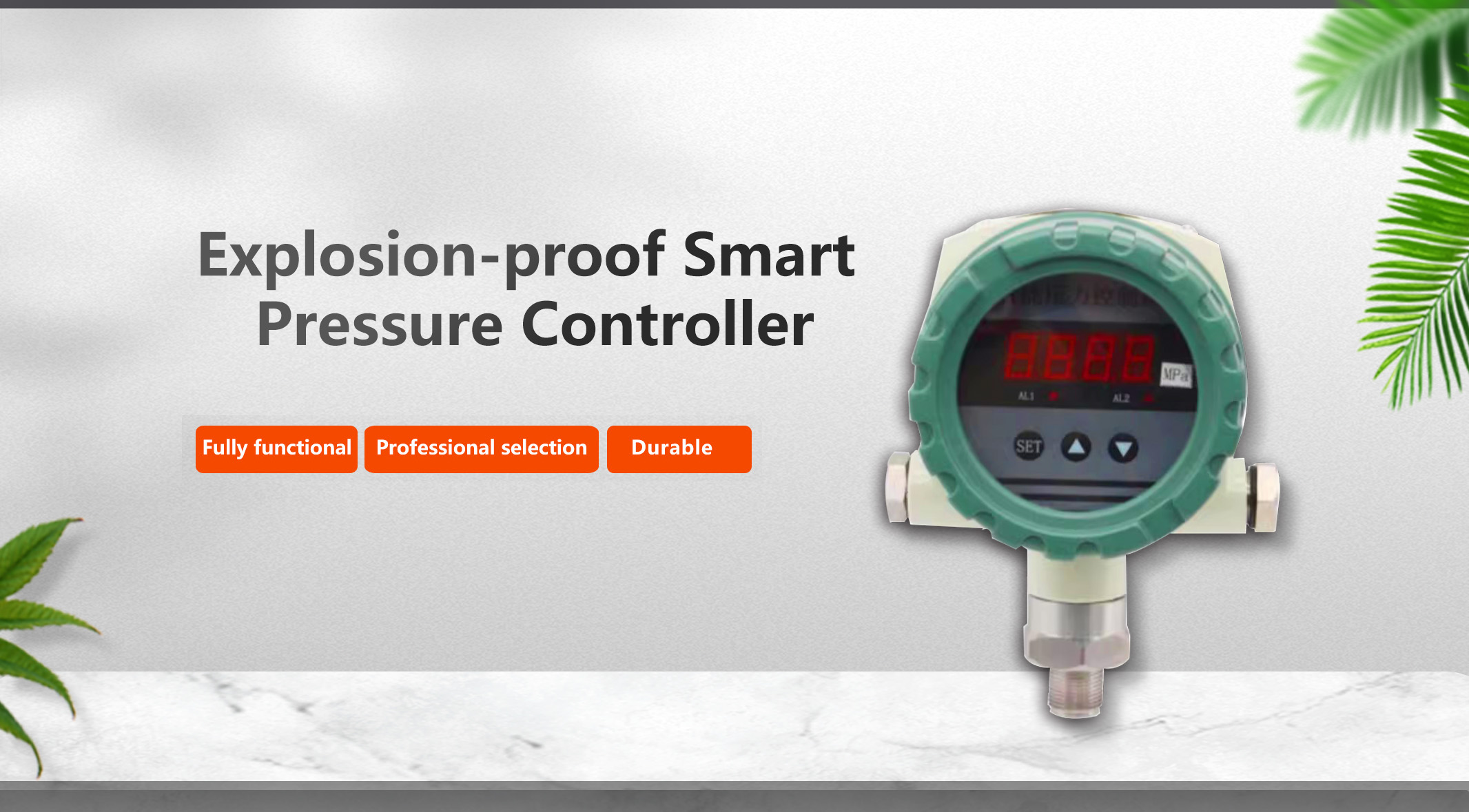

The explosion-proof smart pressure controller integrates pressure measurement, display, output, and control into one intelligent digital device. With a fully electronic structure, it features an oil-filled piezoresistive pressure sensor with an isolation diaphragm. High-precision A/D conversion and microprocessor processing allow real-time pressure display, providing one analog output, four switch outputs, and RS485 communication.
Easy to install, operate, and adjust, this controller is highly reliable and can replace most mechanical pressure switches. It is widely used in industries such as hydropower, water supply, oil, chemicals, machinery, and hydraulics for real-time pressure monitoring and control in hazardous environments.
Product Features
Multi-Level Pressure Configuration: Supports multiple pressure settings to suit various digital pressure control applications.
Flexible Output Signal: Allows switching between normally open or normally closed outputs, with user-customizable settings.
High Visibility Display: Incorporates a 4-digit LED display and high brightness for easy reading in any environment.
Multiple Output Options: Supports up to 4 switching outputs and one combined analog signal output, offering flexible configurations.
Customizable Switching Range: The amount of switching can be freely adjusted between zero and full scale, allowing precise output control.
Technical Parameters
Measuring Range: -0.1~0~60MPa
Degree of Protection: IP65/IP54 (standard)
Stability: ≤0.1% per year
Display Mode: 0.56" Digital Tube
Medium Temperature: -40℃~350℃
Ambient Temperature: -20℃~70℃
Mounting Screws: G1/4 (compact type), M20*1.5 (standard and explosion-proof types)
Accuracy Class: ≤0.5%
Pressure Type: Pressure gauge, negative pressure, absolute pressure
Power supply voltage: 24VDC/220VAC
Display Range: -1999~9999
Relative humidity: ≤80%
Contact Material: Stainless Steel (304/316)
