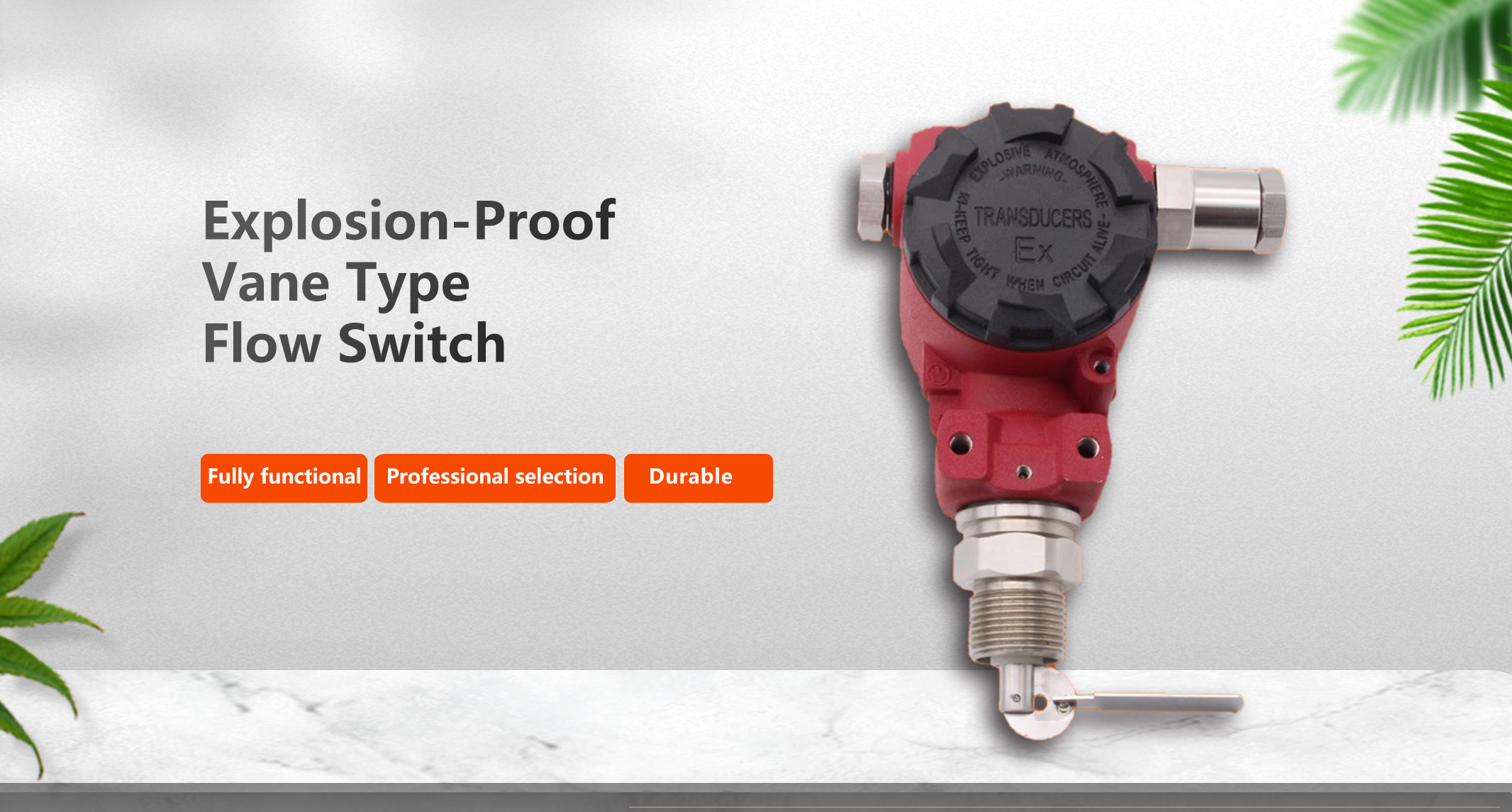

The blade flow switch uses the movement of liquid to drive the blade to shift, testing whether the liquid is in a flowing state. When the liquid is not flowing, the blade remains in its natural position. When the liquid flows, its impact forces the blade to shift, which, through a transmission shaft, activates a microswitch to output a contact signal.
Product Parameters
Case Protection Degree: IP65
Output Mode: SPDT microswitch outputs or DIN plug outputs
Contact useful life: 100,000 cycles
Medium Temperature Range: -30~110℃
Working medium: Air, water and oil
Microswitch parameters: 5A (max), 250V AC/DC
Maximum pressure: 25 bar
Material: Brass or stainless steel housing, stainless steel baffles
Flow Parameters
DN10: Flow protection range 0.08-0.30 m³/h, connection method G3/8 (threaded)
DN15: Flow protection range 0.19-0.68 m³/h, connection method G1/2 (threaded)
DN20: Flow protection range 0.35-1.21 m³/h, connection method G3/4 (threaded)
DN25: Flow protection range 0.55-1.89 m³/h, connection method G1 (threaded)
DN32: Flow protection range 0.97-3.57 m³/h, connection method G1-1/4 (thread) / G1 (thread)
DN40: Flow protection range 1.40-4.84 m³/h, connection method G1-1/2 (thread) / G1 (thread)
DN50: Flow protection range 2.18-7.55 m³/h, connection method G2 (thread) / G1 (thread)
DN65: Flow protection range 3.20-11.2 m³/h, connection method G1 (threaded)
DN80: Flow protection range 1.40-14.8 m³/h, connection method G1 (threaded)
DN100: Flow protection range 2.30–30.2 m³/h, connection method G1 (threaded)
DN125: Flow protection range 3.10-41.60 m³/h, connection method G1 (threaded)
DN150: Flow protection range 4.00–54.70 m³/h, connection method G1 (threaded)
