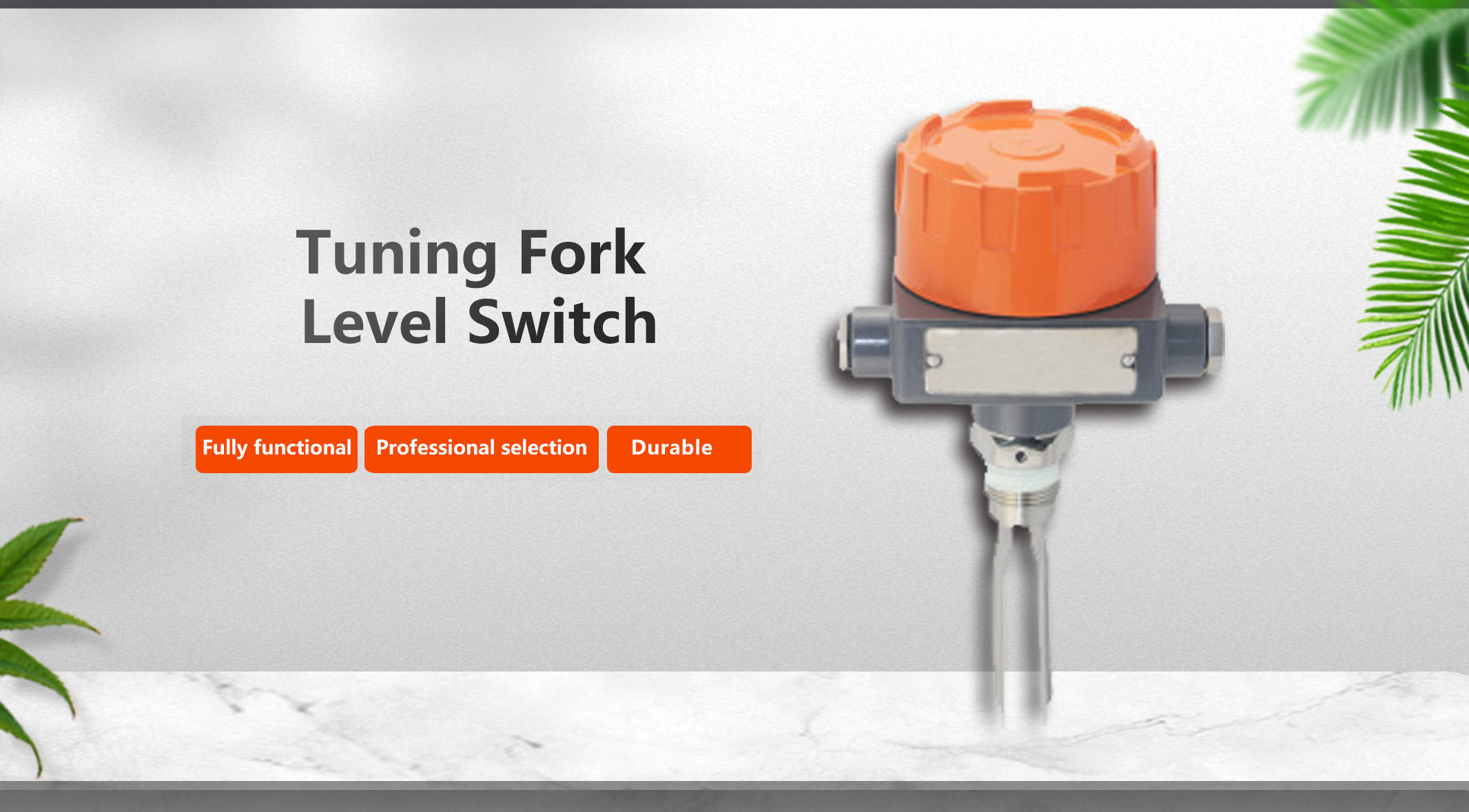

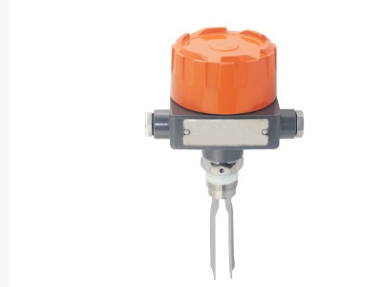

The tuning fork level switch is a highly reliable liquid level detection device that uses crystal excitation to generate stable fork vibrations. When immersed in liquid, the vibration frequency shifts, and the built-in electronic circuit converts this change into an accurate switch signal. Unlike traditional float switches, the tuning fork level switch is resistant to turbulence, bubbles, agitation, and vibrations, ensuring precise liquid level measurement in challenging environments. With no moving parts, it requires zero maintenance, making it an ideal choice for industries such as chemical processing, petroleum, food, and wastewater treatment where durability and accuracy are critical.
Product Characteristics
Compact design for flexible installation in space-limited environments.
Multiple output options: relay output, PNP output for versatile applications.
Suitable for various media, including liquids, acids, alkalis, solid powders, and granules.
Highly durable materials (304, 316L, PTFE) for corrosion resistance in harsh conditions.
Technical Parameters
Medium temperature range: -20~200℃
Environmental temperature: -20~60℃
Environmental humidity: ≤95%RH
Applicable media: Liquids, powders, or granular solids
Density requirements: Solids ≥0.1g/cm³; Liquids ≥0.6g/cm³
Solid particle size: ≤10mm
Maximum liquid viscosity: ＜1000mm²/s
Angle of repose: ≤50°
Pressure range: ≤6.4MPa (sanitary type ≤3MPa)
Material: 304, 316L, PTFE
Protection class: IP66
Connection options: 3/4NPT, G1″, DN50 flange, DN80 flange
Supply voltage: DC24V; AC220V 50Hz
Output signal: 2-wire 5A 220V AC; 3A 24V DC; 3-wire relay output
Vibration frequency: 300±50Hz
