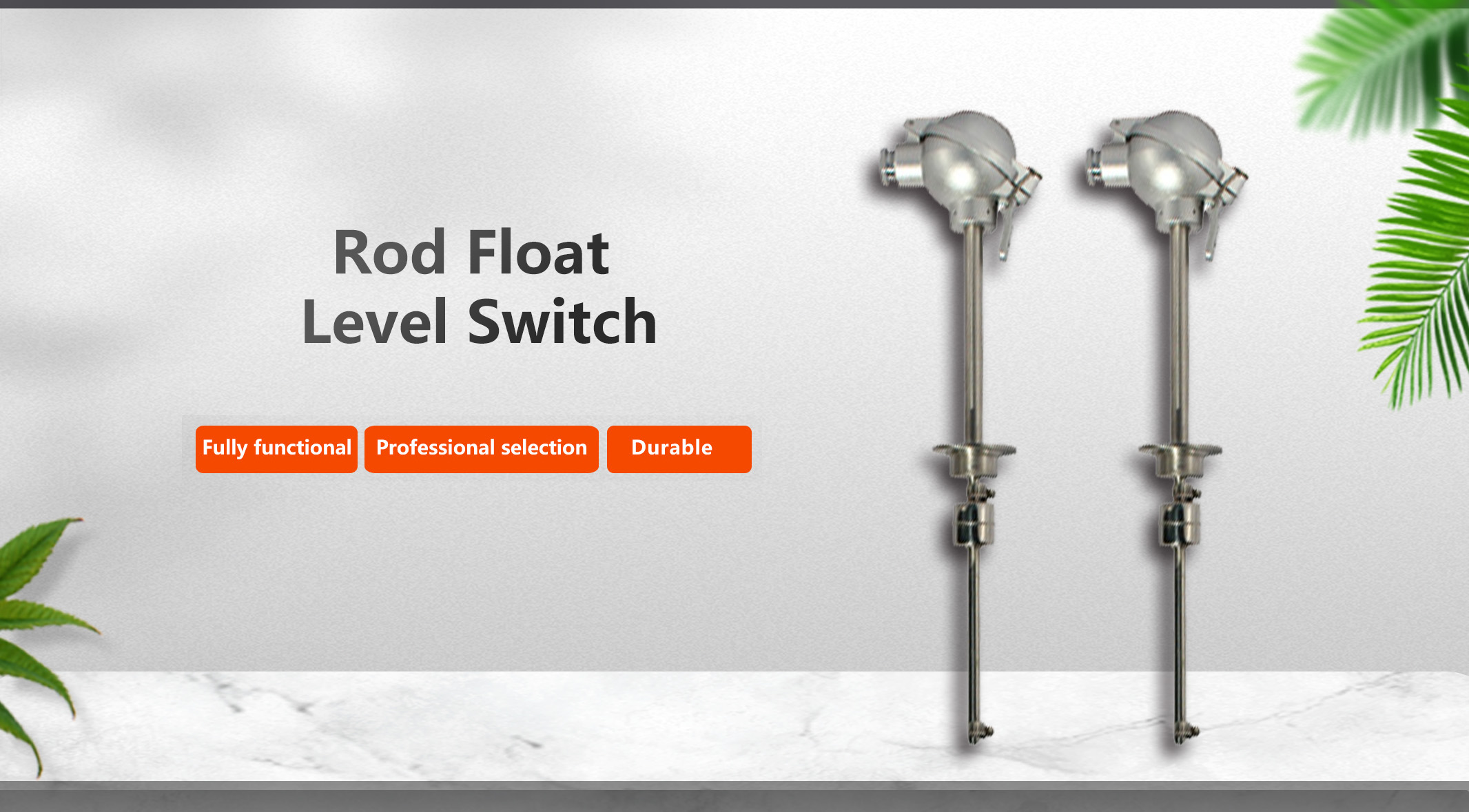

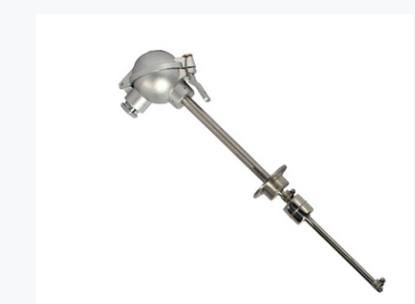

The rod float level switch is a reliable, easy-to-use level controller designed for high-performance applications. With a simple yet efficient design, it provides multi-point control in a single unit. Known for its long lifespan, quick response time, and excellent load impact resistance, this level switch operates using magnetic forces, eliminating the need for mechanical connections and ensuring consistent and dependable performance.
Encased in a sealed metal or plastic tube, one or more reed switches are strategically installed. A hollow float, equipped with ring magnets, moves within the tube, and the float's magnets activate the reed switches to trigger switching actions as the float rises or falls within a designated range.
Product Features:
High-Quality Components: All components are equipped with reed switches sourced from a reliable Russian factory, ensuring superior quality and performance.
Flexible Compatibility: Compatible with both 220VAC and 24VDC circuits, offering versatile usage for different systems.
Reliable Operation in Harsh Environments: Designed to operate reliably in high temperature and high-pressure environments, making it ideal for demanding industrial applications.
Lightweight and Compact: The unit is lightweight and compact, with the capability to achieve multi-point control and remote monitoring as per specific needs.
Customizable Solutions: Available in a variety of materials and process connection methods, providing tailored solutions to meet diverse application requirements.
Technical Parameters:
Maximum Pressure: 20 bar
Medium Temperature: Maximum 250°C
Density of the Medium: ≥ 0.75 g/cm³
Output: Switching output, selectable contact capacity: 24VDC, 0.5A SPDT or 220VAC, 0.5A SPDT
Protection Class: IP65
Material: SUS304, SUS316, PP available
Process Connection: Threaded or flanged connections available
