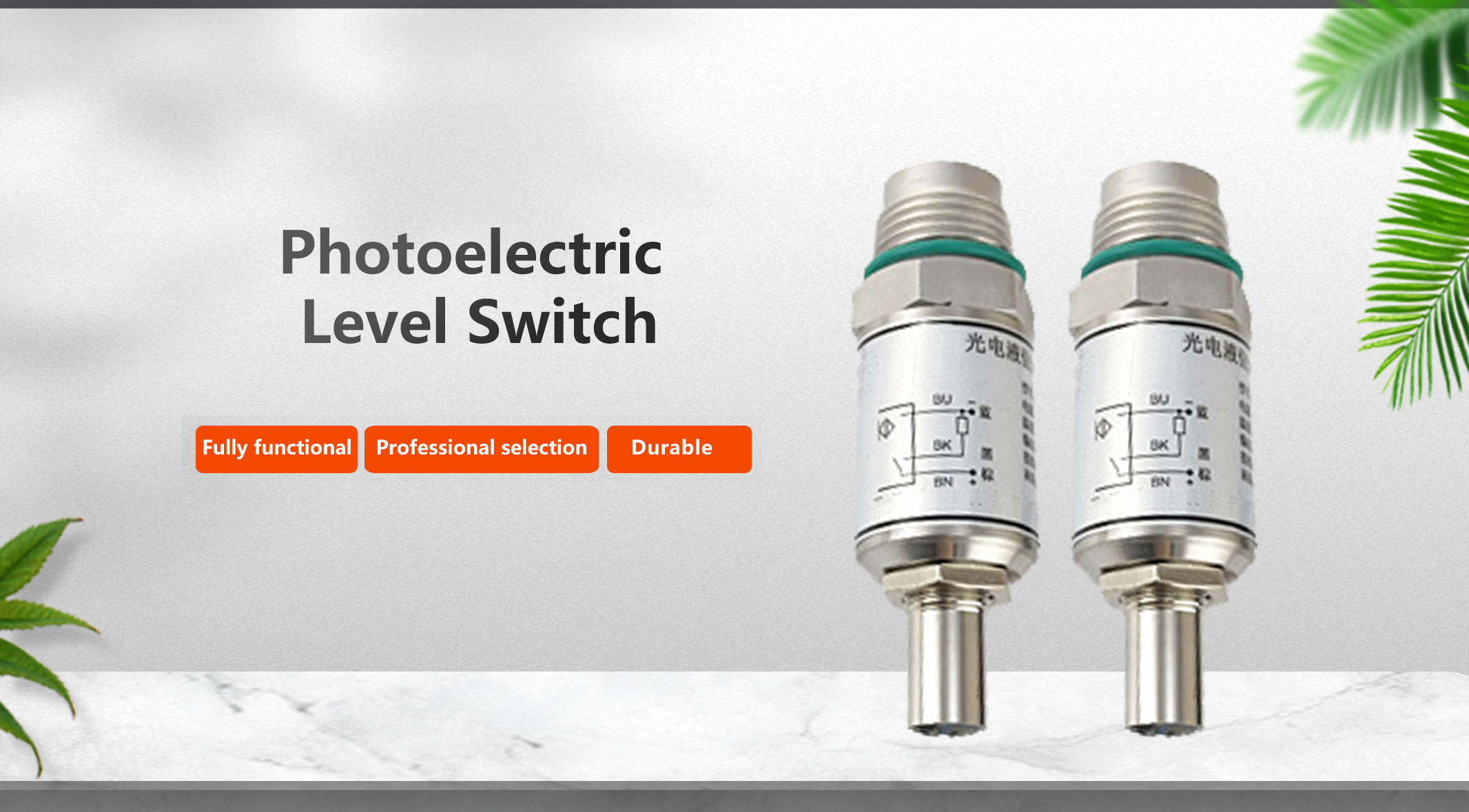

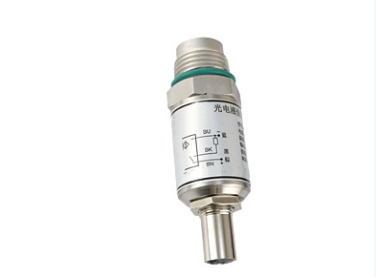

The photoelectric level switch uses advanced optical sensors to manage and control liquid levels with high precision. Utilizing infrared detection, this switch operates based on the principles of light refraction and reflection. When the liquid reaches a high level, it creates a distinct interface between the liquid and the switch. Conversely, at low liquid levels, the interface shifts to air, changing the light reflection received by the internal photodetector. These variations in light intensity directly correspond to different switch states, ensuring reliable and accurate liquid level monitoring for a wide range of industrial applications.
Product Features
Multiple Shell Material Options: Available in various materials, resistant to acids and alkalis for enhanced durability.
Compact Design: Small size allows installation in narrow spaces, making it easy to mount and saving time.
High Accuracy & Repeatability: Ensures precise and consistent switch activation.
LED Alarm Indicator: Built-in LED light displays alarm status; when illuminated, it indicates output activation.
Technical Parameters
Work Pressure: ≤1MPa
Operating Temperature: -20~80℃
Supply Voltage: 5-12VDC/10-28VDC(±5%)
Supply Current: 500mA
Output Type: NPN, PNP, and switching output types
Available Materials: PC, Brass, Polysulfone Resin, SUS304
Applicable Medium: Oil, wastewater, aqueous solutions, wine, alcohol, etc.
Wire Length: 20AWG, 250mm PTFE wire, 8mm tin-plated
Connection Method: G pipe threads, NPT tapered pipe threads, M threads, and SAE (with O-rings)
