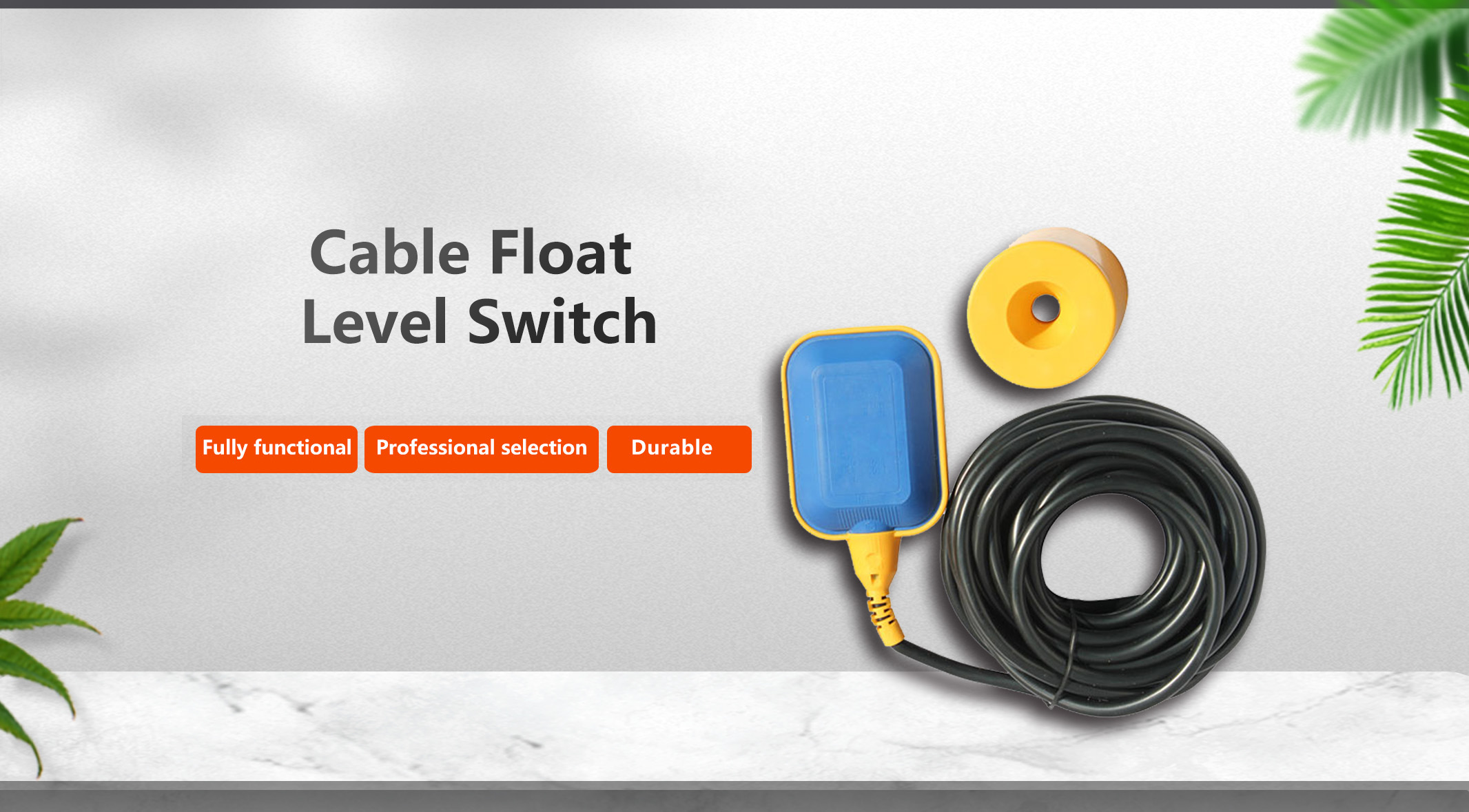

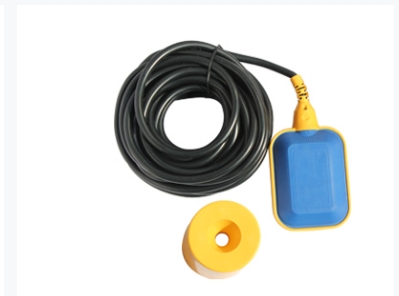

The cable float level switch is designed for a wide range of liquid applications, including mildly corrosive liquids. Its customizable cable length ensures flexibility for various installation needs. Featuring a durable metal float and utilizing a mercury switch for reliable contact, this S-type cable float level switch excels in high-temperature environments and is built with a flexible, long-lasting cable. Known for its simplicity, reliability, and cost-effectiveness, this level switch is ideal for large container level control and is commonly used in industries such as municipal water supply and drainage, fire protection, and water treatment.
Product Features:
Efficient and Reliable: Designed to manage liquid levels in tanks, troughs, or wells.
Automatic Regulation: Provides easy operation and convenient installation, with maintenance-free performance.
Environmentally Friendly: Non-toxic and resistant to wastewater, making it ideal for various household and industrial applications such as pools, oil tanks, and containers holding weak acids or weak alkalis.
Series Connection Capability: Can be connected in series for enhanced control:
Two controllers can be connected in series (one in the water tank, one in the well) to prevent dry running and protect pumps.
Three controllers connected in series (one in the water tower, one in the filter tank, and one in the river or well) enable simultaneous control of two pump systems.
Technical Specifications:
Rated Current and Voltage: 10(8A) 250V~ / 10(4A) 380V
Operating Temperature: 0℃ < Water Temperature ≤ 80℃
Control Range: ≥0.2m
Service Life: ≥50,000 cycles
Cable Length: Standard 4m (customizable lengths and special environments available upon request)
