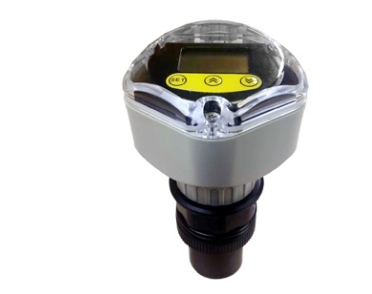

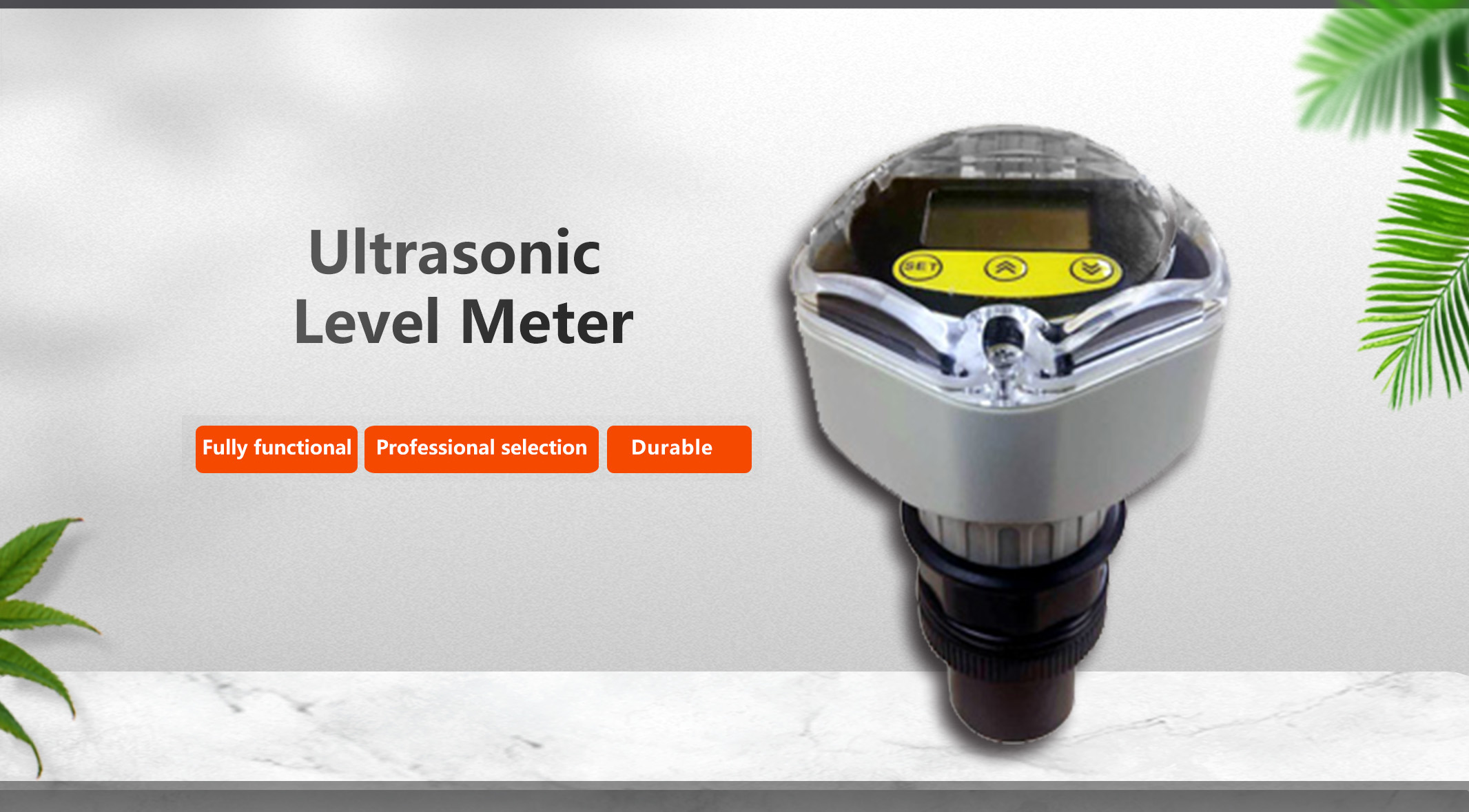

The Ultrasonic Liquid Level Meter is an advanced, intelligent, non-contact measurement instrument designed to accurately measure the level of liquids and solid materials. It incorporates automatic power adjustment, gain control, and temperature compensation, leveraging advanced detection and computer technologies to enhance measurement accuracy. This instrument effectively suppresses interference echoes to ensure reliable and accurate measurement results. It is widely used for liquid level measurement, solid material height measurement, and distance measurement in various industrial applications.
Product Features:
Excellent stability with long-term zero drift stability of up to 0.25% FS/year, ensuring consistent and reliable measurements.
Reverse protection and current limit protection circuits enhance safety during operation.
Solid-state structure with no moving parts, ensuring durability and minimizing wear and tear.
High reliability and a long service life, making it a cost-effective choice for long-term use.
Easy installation with a simple structure that is both economical and durable.
Lightweight, resistant to fouling, and ensures no contamination of the measured medium, preserving the quality of the system.
Technical Parameters:
| Functions | Integrated Type | Split Type |
Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m |
Measurement Accuracy | 0.5% - 1.0% | 0.5% - 1.0% |
Resolution | 3mm or 0.1% (whichever is greater) | 3mm or 0.1% (whichever is greater) |
Display | Liquid Crystal Display | Liquid Crystal Display |
Analog Output | 4-wire 4～20mA/510Ω load | 4～20mA/510Ω load |
Relay Output | Optional 2 sets of AC 250V/8A or DC 30V/5A status programmable | Optional 2 groups for single channel, 4 groups for dual channel AC 250V/8A or DC 30V/5A status programmable |
Electricity Supply | Standard 24VDC, Optional 220V AC+15% 50Hz | Standard 220V AC+15% 50Hz, Optional 24VDC 120mA, customized battery power supply |
Environmental Temperature | Display Meter: -20～+60℃, Probe: -20～+80℃ | Display Meter: -20～+60℃, Probe: -20～+80℃ |
Communication | Optional 485, 232 communication (factory protocol) | Optional 485, 232 communication (factory protocol) |
Protection Class | Display: IP65, Probe: IP68 | Display: IP65, Probe: IP68 |
Probe Cables | Not applicable | Up to 100 meters, 10 meters standard |
Probe Installation | Selection according to range and probe | Selection according to range and probe |
