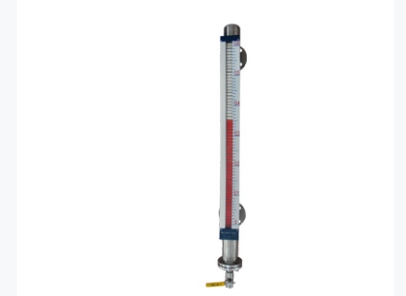

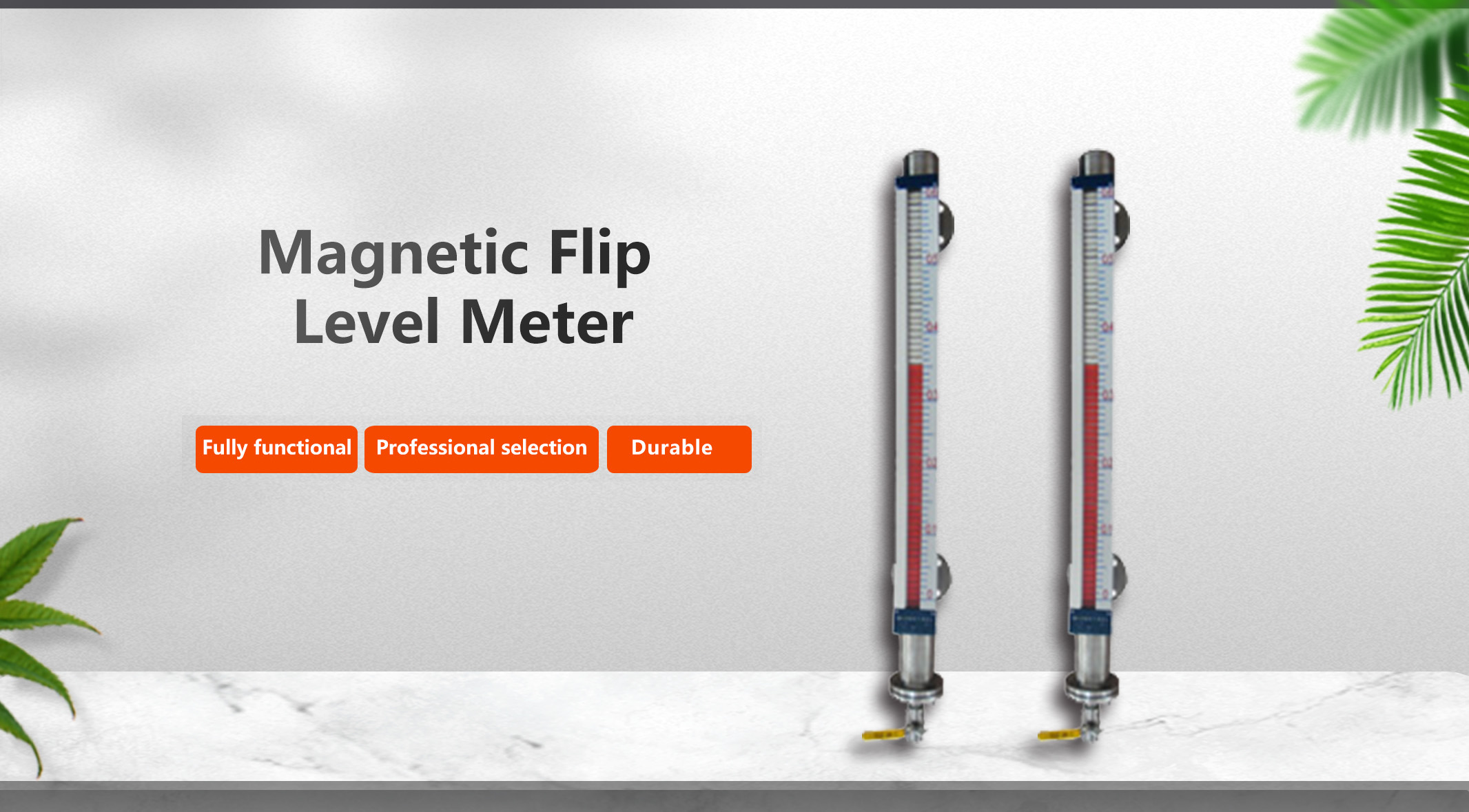

The Magnetic Flip Level Meter, also known as a magnetic float level indicator, is a highly reliable solution for precise liquid level measurement in industrial process control. Utilizing a magnetically coupled float, this device moves with liquid level changes to provide real-time, accurate readings. Designed for high durability and stability, it ensures continuous monitoring in a variety of industries, including chemical processing, water treatment, oil and gas, and manufacturing. Its mechanical display eliminates the need for external power, making it an energy-efficient and maintenance-free level measurement solution.
Purpose and Features
Versatile Application: Ideal for industries such as petroleum, chemical processing, metallurgy, food and beverage, pharmaceuticals, fertilizers, environmental protection, power generation, and water supply. Suitable for measuring liquid levels in pressure vessels and open tanks.
Local and Remote Monitoring: Provides direct local level indication and can be equipped with limit alarms and remote transmission for real-time monitoring and control.
Corrosion and High-Pressure Resistance: Designed to withstand corrosive environments and high-pressure conditions, making it suitable for harsh industrial applications.
Dual-Liquid Interface Measurement: Capable of accurately measuring liquids with different densities, even in low-fluidity conditions at room temperature.
Specialized High-Precision Model: The UFC column directional reflective magnetic turnover level gauge features high measurement accuracy, strong magnetic effect, smooth turnover, and non-fading red-white display, making it suitable for low-light environments and nighttime observation.
Durable and Maintenance-Friendly: Made from stainless steel (1Cr18Ni9Ti) and corrosion-resistant materials, ensuring long service life. The sealed measurement system prevents leaks and contamination.
Clear and Intuitive Display: Features a high-contrast reflective red-white column and ball indicator, along with cm, decimeter, and meter scale markings, for easy and accurate level reading.
Technical Data and Specifications
Working Temperature
Suitable for various liquid measurements within a range of -20°C to +150°C and 150°C to 500°C.
For extreme low-temperature applications (-20°C to -80°C), an insulated vacuum-jacketed version is available.
Medium Viscosity
Standard: ≤0.04 Pa·S
For high-viscosity liquids, a steam-heated jacket or electric heating belt can be integrated to improve fluidity.
Corrosion Resistance
Custom anti-corrosion level gauges are available in PVC, FRP, ABS engineering plastics, or non-magnetic metal materials, based on user requirements.
Medium Density Compatibility
Standard: 0.5 g/cm³ to 2 g/cm³
For media with a density above 2 g/cm³ or below 0.5 g/cm³, customization options can be discussed.
Working Pressure
Standard range: 0 - 2.45 MPa
High-pressure models: 2.45 - 9.6 MPa (users should specify pressure requirements when ordering).
Steam Heating Jacket
Withstands a pressure of ≤ 0.6 MPa for temperature-sensitive applications.
Dual-Medium Interface Measurement
Capable of measuring the interface between two different liquid densities.
Special Boiler Level Gauge
Custom boiler-specific level gauges available with red-green display for enhanced visibility.
PZC Series (Standard) Liquid Level Alarm Sensor
Upper and lower limit alarm sensors
Liquid level sensors
FZC Series (Explosion-Proof) Liquid Level Alarm Sensor
Explosion-proof rating: Exd Ⅱ BT6
Upper and lower limit alarm sensors
Liquid level sensors
