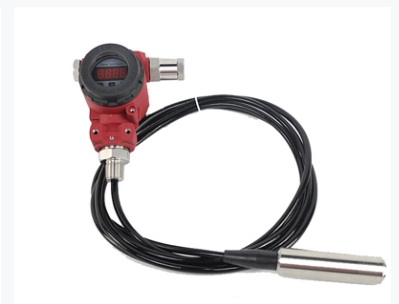

The Hydrostatic Level Transmitter features high-precision imported sensing chips with advanced temperature compensation and an integrated transmitter circuit, delivering a stable 4-20mA output for seamless integration with A/D acquisition systems. Built with high-quality imported components, it includes reverse polarity protection, bypass capacitor filtering, and electromagnetic shielding, ensuring strong resistance to EMI and RFI interference. Optional field display options enhance monitoring convenience.
This submersible level transmitter utilizes hydrostatic pressure measurement, where liquid static pressure is proportional to its height. A piezoresistive silicon or ceramic sensing element converts the pressure into an electrical signal, which undergoes temperature compensation and linear correction, resulting in an accurate 4-20mA DC output for reliable industrial liquid level measurement.
Product Characteristics:
Wide Application Range: Suitable for various media, including water, sewage, oil, and high-viscosity liquids, ensuring high-precision measurement unaffected by foaming or deposition.
Durable Solid-State Structure: No moving parts, providing high reliability and long service life.
Easy Installation: Can be fixed with a flange or a multi-purpose mounting bracket for convenient setup and use.
Strong Interference Resistance: Features excellent anti-interference and lightning protection for stable operation.
Enhanced Safety Features: Equipped with power reverse polarity protection and overload current limiting protection.
Advanced Material Technology: Resistant to fatigue, wear, vibration, shock, and overload, ensuring long-term durability.
Technical Parameters
Measurement Range:
Cable Type: 0-0.2m to 0-500m (customizable based on customer requirements).
Rod Type: 0-0.2m to 0-3m (custom lengths available).
Armored Cylinder Type: 0-0.2m to 0-500m (customizable based on customer requirements).
Corrosion-Resistant Type: 0-0.5m to 0-20m (custom lengths available).
Accuracy: 0.5%, 0.2%
Pressure Overload: 150%
Protection Class: IP65, IP68
Power Supply: 24VDC (15-36VDC)
Output Signals: 4-20mA, 0-5V, 0-10V, HART, RS485
Temperature Drift:
-10℃ to 50℃: <0.2%
-20℃ to 85℃: <0.5%
Electrical Insulation Resistance: >100MΩ at 500VDC
EMI/RFI Resistance: 30V/m, 10KHz to 500MHz
Long-Term Stability: Annual drift <±0.1%
Compensation Temperature: 0℃ to 50℃
Operating Temperature: 0℃ to 80℃
Storage Temperature: -40℃ to 100℃
Shock/Vibration Resistance: 200 HZG, with annual stability better than 0.1%
Pressure Transfer Diaphragm: 316L Stainless Steel, 96% Alumina Ceramic, Diffused Silicon
Probe Housing Material: 1Cr18Ni9Ti, PTFE
Cable Sheath Material: Polyethylene or Polyamide
Sealing Material: Nitrile Rubber, Fluorocarbon Rubber
Measuring Medium: Liquids compatible with the above materials
Junction Box Housing: Die-cast aluminum alloy with epoxy-coated surface
