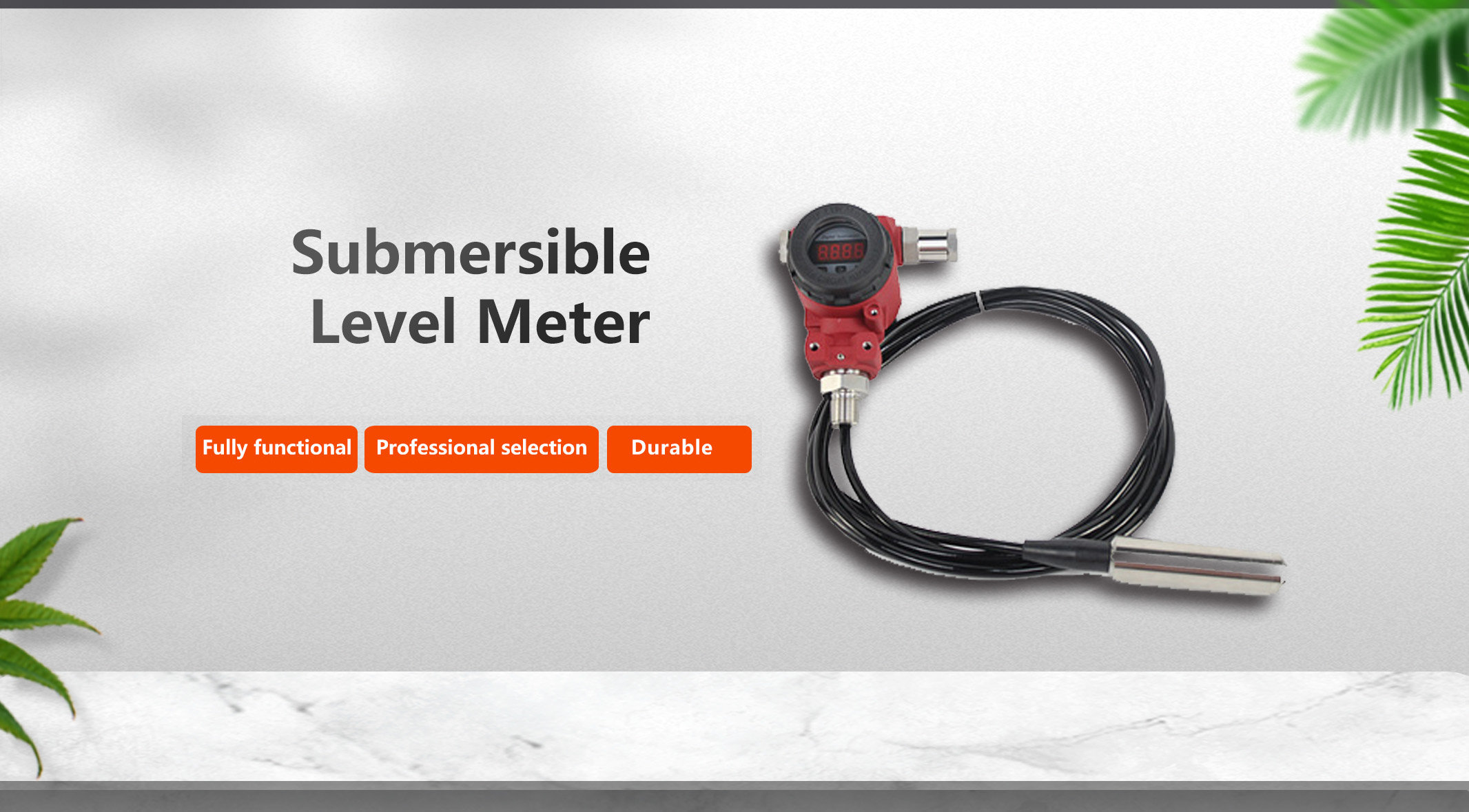

The immersion level meter features imported sensing chips with precise temperature compensation and an integrated transmitter circuit, providing a standard 4-20 mA output signal. This allows direct connection to A/D acquisition systems. High-quality imported components are used in the transmitter circuit, which includes reverse polarity protection, bypass capacitor filtering, and shielding to ensure resistance to electromagnetic and radio frequency interference. Optional field display options make monitoring more convenient.
The transmitter operates on the principle that the static pressure of the measured liquid is proportional to its height. It uses a piezoresistive effect from either a silicon or ceramic sensing element to convert static pressure into an electrical signal. This signal is then temperature-compensated and linearly corrected to produce a standard 4-20 mA DC output.
Product Features:
Wide Range of Application: Suitable for various media including water, wastewater, oil and high viscosity liquids, ensuring high accuracy
measurement unaffected by foam or deposit.
Solid and Durable Structure: No moving parts, providing high reliability and long service life.
Easy Installation: Can be fixed with a flange or multi-purpose mounting bracket for convenient installation.
Strong Interference Resistance: Features excellent interference protection and lightning protection for stable operation.
Enhanced Safety Features: Equipped with polarity inversion protection and current overload protection.
Advanced Material Technology: Resistant to fatigue, wear, vibration, shock and overload, ensuring long-term durability.
Technical Parameters:
Measurement Range:
Cable Type: 0-0.2m to 0-500m (customizable according to customer requirements).
Bar Type: 0-0.2m to 0-3m (customized lengths available).
Shielded Cylinder Type: 0-0.2m to 0-500m (customizable according to customer requirements).
Type Corrosion Resistant: 0-0.5m to 0-20m (customized lengths available).
Accuracy: 0.5%, 0.2%
Pressure Overload: 150%
Protection class: IP65, IP68
Power Supply: 24VDC (15-36VDC)
Output signals: 4-20mA, 0-5V, 0-10V, HART, RS485
Temperature Derivative:
10℃ to 50℃: <0.2%
-20℃ to 85℃: <0.5%
Electrical Insulation Resistance: >100MΩ to 500VDC
EMI/RFI resistance: 30V/m, 10KHz to 500MHz
Long-term stability: Annual drift <±0.1%
Compensation Temperature: 0℃ to 50℃
Operating Temperature: 0℃ to 80℃
Storage Temperature: -40℃ to 100℃
Shock/Vibration resistance: 200 HZG, with annual stability better than 0.1%
Material Specifications:
Pressure Transfer Diaphragm: 316L Stainless Steel, 96% Alumina Ceramic, Cast Silicon
Probe Housing Material: 1Cr18Ni9Ti, PTFE
Cable Layer Material: Polyethylene or Polyamide
Sealing Material: Nitrile Rubber, Fluorocarbon Rubber
Measuring medium: Liquids compatible with the mentioned materials
Connection Box Housing: Die-cast aluminum alloy with epoxy coated surface
