Radar waves are a form of electromagnetic waves used for level detection in radar level gauges. Similar to visible light, radar waves travel at the speed of light and have frequencies ranging from 300 MHz to 3000 GHz. These waves can penetrate through vapors, dust, and other interferences, reflecting off obstacles. The reflection quality improves with the conductivity or dielectric constant of the measured medium. The time taken for the signal to return is converted into a level measurement by electronic components, ensuring stable and precise readings in a very short time.

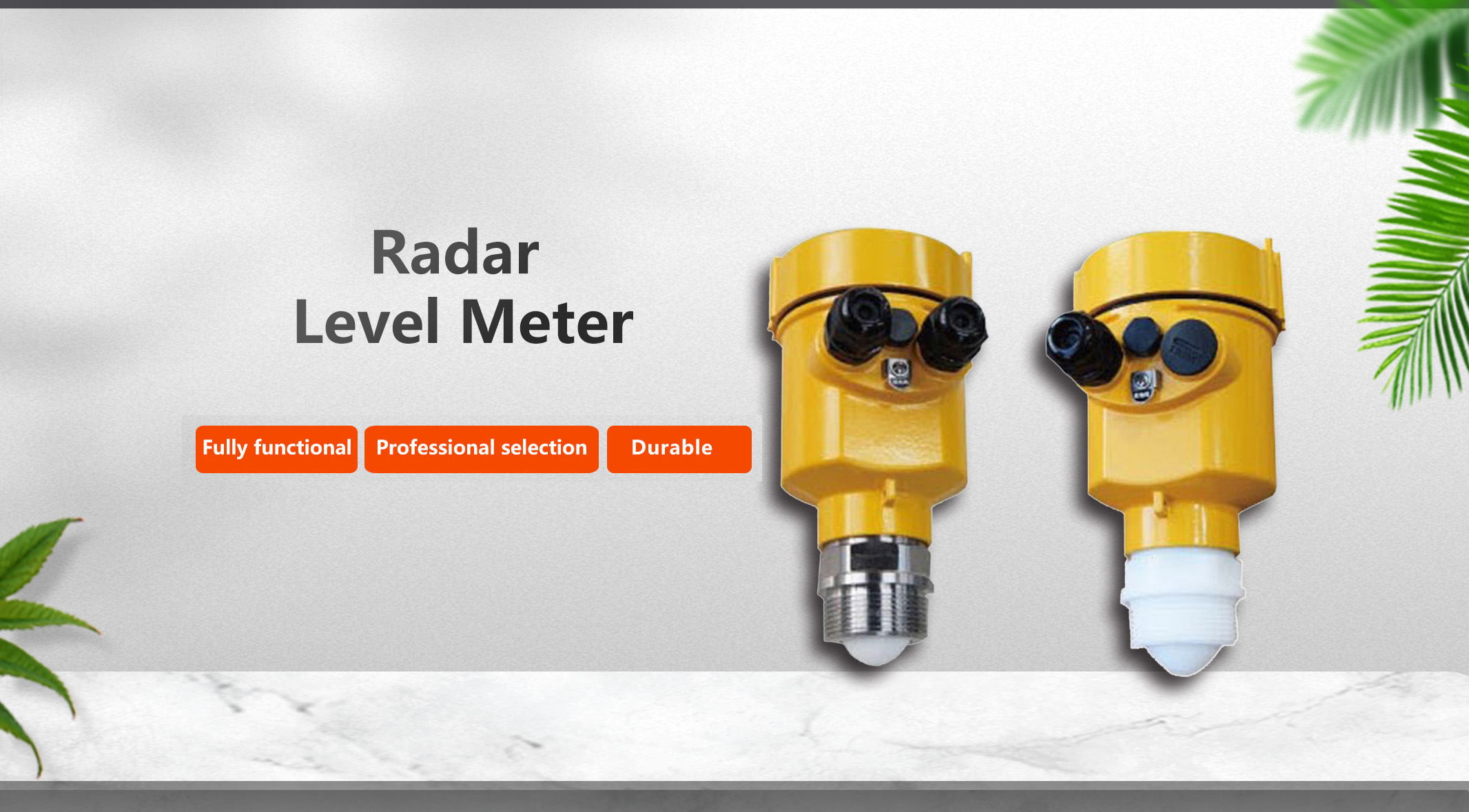

The radar level gauge emits narrow microwave pulses through an antenna. When these microwaves hit the surface of the measured medium, they are reflected back to the antenna system, which then transmits the signal to the electronic components for conversion into a level measurement. Due to the high speed of microwave propagation, this process is almost instantaneous.
Product Features:
Non-contact radar technology: No wear, ensuring long durability and no pollution.
Compact antenna size: Easy to install and space efficient.
Small blind measuring area: Achieve accurate measurements even in small tanks.
Dust Resistant Performance: Electromagnetic waves work effectively in severe dusty environments.
Reliable performance under fluctuating conditions: Ensures accurate measurements even with fluctuations in liquid level.
Ideal for solids and low dielectric constant media: Perfect for measuring challenging materials.
Technical Parameters:
Probe length: 0-70m
Medium temperature range: -40°C to 250°C
Ambient temperature: -40°C to 70°C
Repeatability: ±2mm
Resolution: 1mm
Response time: >0.2s (depending on specific use)
Accuracy: ±3mm
Pressure range: ≤2MPa (high pressure optional)
Antenna Material: Stainless Steel
Housing protection degree: IP66
Connection method: Thread G 1'' (possible minimum of 1''), flange (user selection)
Power supply voltage: DC 24V; AC 220V
Output signal: 4-20mA, HART, RS485
Explosion-proof grade: Exia II C T4
