Ultrasonic liquid level meter is a kind of intelligent non-contact liquid (object) level measuringinstrument. The product has automatic power adjustment, gain control, temperature compensation,the use of advanced detection technology and computer technology to improve the measurement
accuracy of the instrument, the interference echo has a suppression function to ensure that themeasurement results of the real. The products can be widely used in the measurement of the levelof various liquids and the height of solid materials, and can also be used for distancemeasurement.
The working principle of ultrasonic level meter is that the ultrasonic transducer (probe) sends outhigh-frequency pulsed acoustic wave which meets the surface of the measured level (material) andis reflected back to the surface, and the reflected echo is received by the transducer and convertedinto an electric signal. The propagation time of the sound wave is directly proportional to thedistance from the sound wave to the surface of the object. The relationship between the acoustictransmission distance S and the speed of sound C and the acoustic transmission time T can beexpressed by the formula: S = C × T / 2.

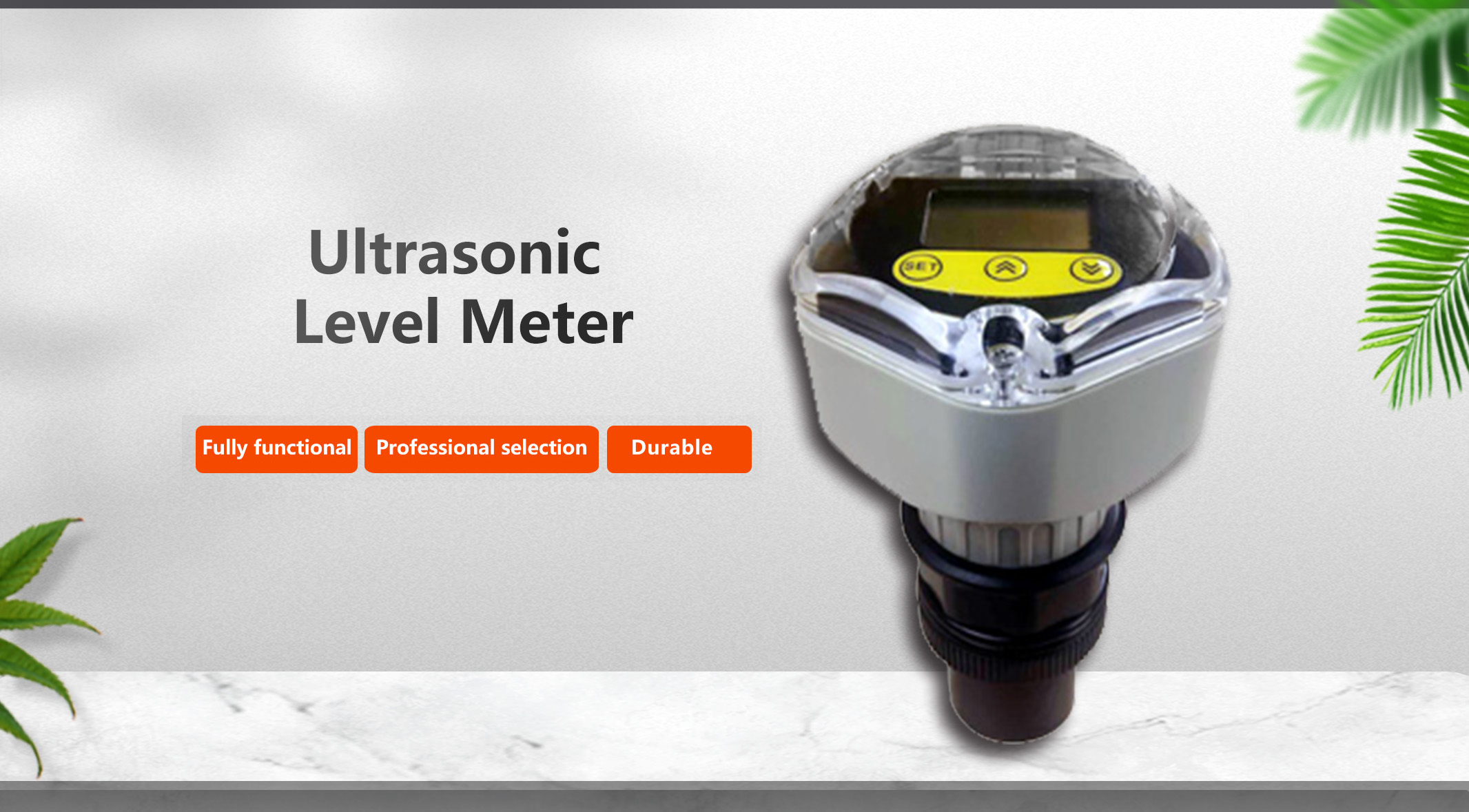

Ultrasonic Level Meter
Product Features:
Excellent stability: Long-term zero drift stability of up to 0.25% FS/year, ensuring consistent and reliable measurements.
Protection: Protection circuits against polarity inversion and current limitation that increase safety during operation. Solid structure: No
moving parts, ensuring durability and minimizing wear.
High reliability: Long service life, making it a cost-effective option for extended use.
Easy installation: Simple, economical and durable structure.
Lightweight and resistant to dirt: Does not contaminate the measured medium, preserving the quality of the system.
Technical Parameters:
Function：Integrated
Range:5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Measurement Accuracy:0.5% - 1.0%
Resolution：3mm or 0.1% (whichever is greater)
Display：LCD Display
Analog Output：4 cables 4~20mA / 510Ω charge
Optional Relay ：Output, 2 sets AC 250V/8A or DC 30V/5A programmable
Power supply：24VDC standard, Optional 220V AC+15% 50Hz
Ambient Temperature Display: -20~+60℃, Probe: -20~+80℃ Display: -20~+60℃, Probe: -20~+80℃
Communication Optional ：485, 232 (factory protocol)
Protection class ：Display: IP65, Probe: IP68
Probe Cables ：Not applicable
Probe Installation ：Range and Probe Selection
Function：Divided Type
Range:5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m，70m
Measurement Accuracy:0.5% - 1.0% 0.5% - 1.0%
Resolution： 3mm or 0.1% (whichever is greater)
Display： LCD Display
Analog Output： 4~20mA / 510Ω charge
Optional Relay ： Optional, 2 groups for single channel, 4 groups for double channel AC 250V/8A or DC 30V/5A programmable
Power supply：220V AC+15% 50Hz standard, Optional 24VDC 120mA, custom battery power supply
Ambient Temperature Display: -20~+60℃, Probe: -20~+80℃ Display: -20~+60℃, Probe: -20~+80℃
Communication Optional ： 485, 232 (factory protocol)
Protection class ：Display: IP65, Probe: IP68
Probe Cables ：Up to 100 meters, 10 meters standard
Probe Installation ：Range and Probe Selection
