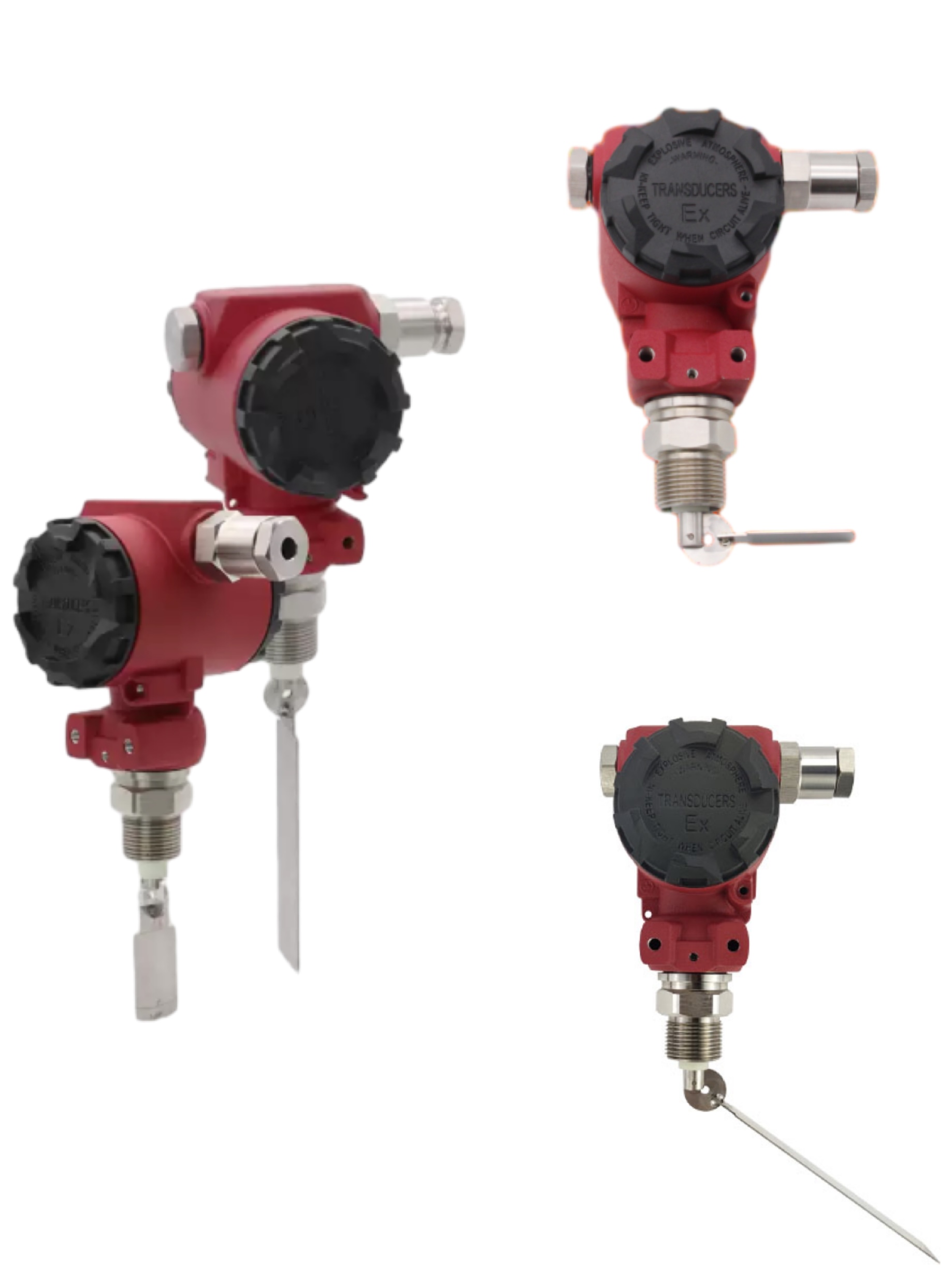

The Explosion-Proof Vane Type Flow Switch is designed to monitor liquid flow in pipelines, ensuring system safety and efficiency. Using a high-sensitivity vane mechanism, it detects fluid movement by shifting when liquid flows, triggering a microswitch to output a contact signal. When no flow is detected, the vane returns to its default position. This durable and reliable flow switch is ideal for applications in hazardous environments, including chemical processing, oil and gas, and industrial water systems, ensuring precise real-time flow monitoring and control.
Shell Protection Grade: IP65
Output Form: Microswitch SPDT outputs or DIN plug outputs
Contact Life: 100,000 cycles
Medium Temperature Range: -30～110℃
Working Medium: Air, water, and oil
Microswitch Parameters: 5A (max.), 250V AC/DC
Maximum Pressure: 25 bar

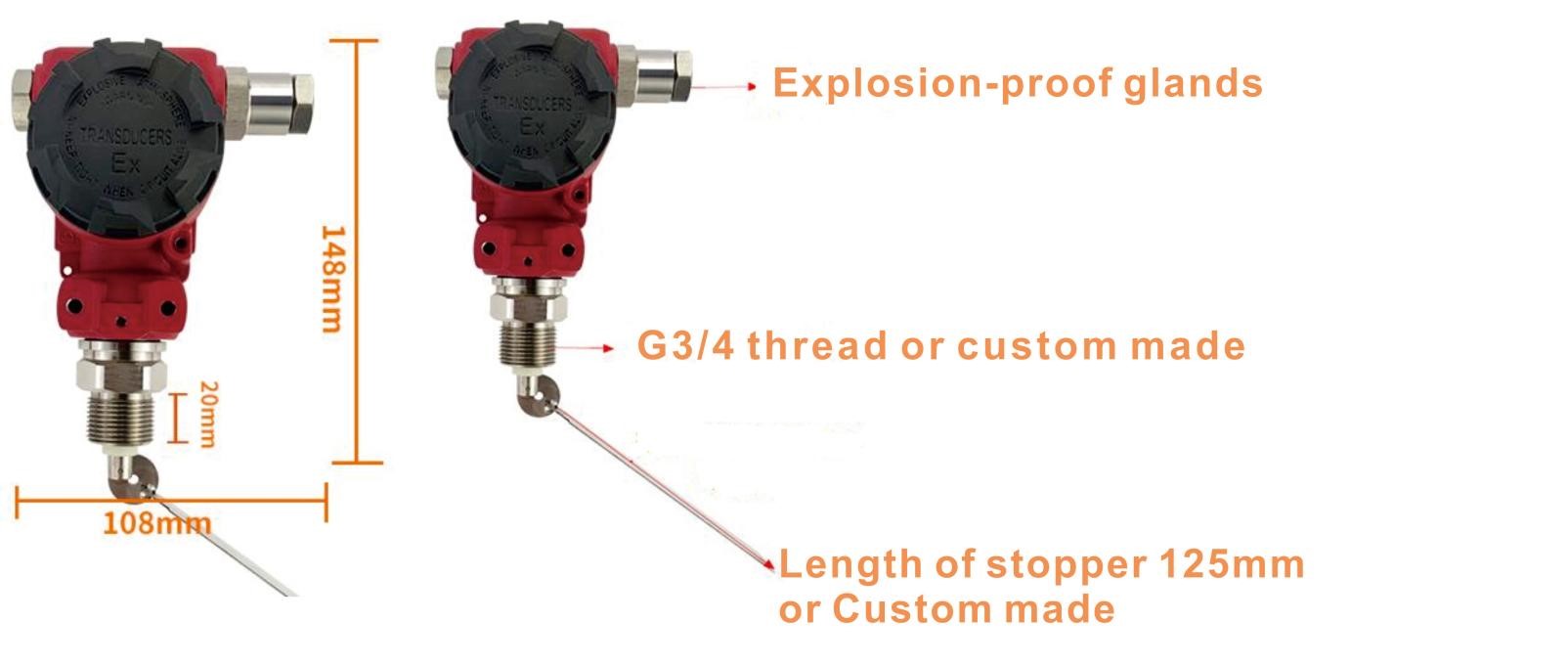

Material: Housing in brass or stainless steel, baffles in stainless steel
DN10: Flow protection range 0.08—0.30 m³/h, connection method G3/8 (threaded)
DN15: Flow protection range 0.19—0.68 m³/h, connection method G1/2 (threaded)
DN20: Flow protection range 0.35—1.21 m³/h, connection method G3/4 (threaded)
DN25: Flow protection range 0.55—1.89 m³/h, connection method G1 (threaded)
DN32: Flow protection range 0.97—3.57 m³/h, connection method G1-1/4 (threaded) / G1 (threaded)
DN40: Flow protection range 1.40—4.84 m³/h, connection method G1-1/2 (threaded) / G1 (threaded)
DN50: Flow protection range 2.18—7.55 m³/h, connection method G2 (threaded) / G1 (threaded)
DN65: Flow protection range 3.20—11.2 m³/h, connection method G1 (threaded)
DN80: Flow protection range 1.40—14.8 m³/h, connection method G1 (threaded)
DN100: Flow protection range 2.30—30.2 m³/h, connection method G1 (threaded)
DN125: Flow protection range 3.10—41.60 m³/h, connection method G1 (threaded)
DN150: Flow protection range 4.00—54.70 m³/h, connection method G1 (threaded)
