The baffle-type flow switch features a low pressure drop and high-precision design, offering high reliability, long service life, a wide operating temperature range, and high pressure resistance. It not only allows precise setting of the protection flow value according to customer requirements but also enables on-site adjustment of the setpoint as needed in actual working conditions.
Applicable Medium:Liquids — suitable for controlling the flow of liquids in small to medium-sized pipelines.
High reliability and long service life
Adjustable setpoint range
Wide temperature range and high pressure resistance
Enclosure Protection: IP65
Output Type: SPDT micro switch or DIN connector output
Contact Life: 100,000 operations
Operating Temperature Range: -30℃ to 110℃
Working Medium: Air, water, and oil
Micro Switch Rating: Max. 5A, 250VAC/DC
Maximum Pressure: 25 bar

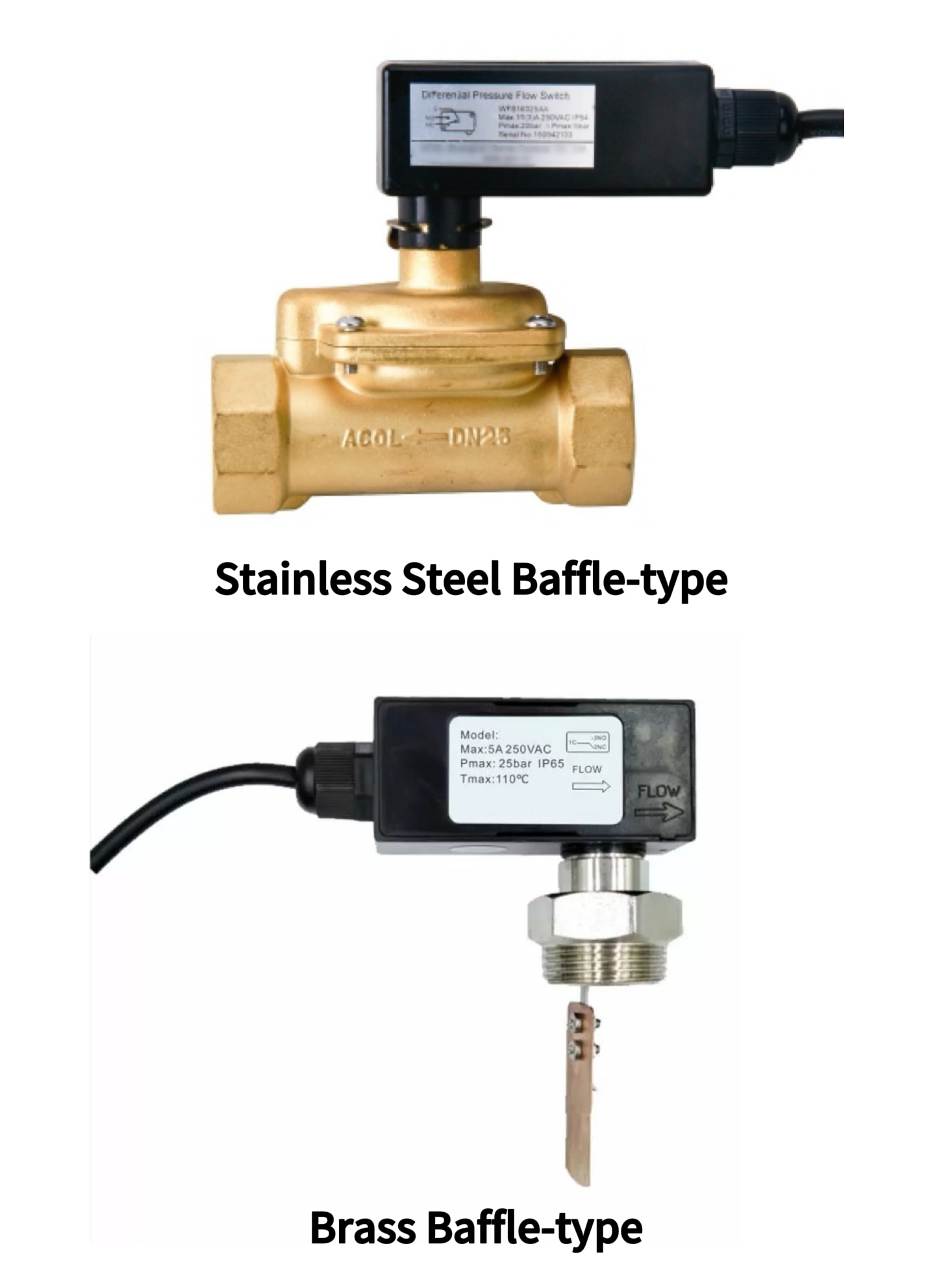

Material: Housing made of brass or stainless steel; baffle made of stainless steel
