ZINACA Application of Flow Meters in Electroplating Wastewater Treatment Systems

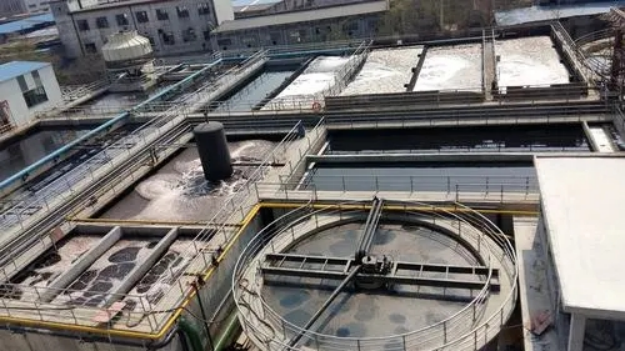

Project Background: Electroplating processes are commonly used in industries like automotive, electronics, and jewelry manufacturing to apply metal coatings to surfaces. However, these processes generate wastewater that contains hazardous chemicals, heavy metals, and other contaminants. Efficient treatment of electroplating wastewater is crucial to ensure that it meets environmental standards and prevents pollution. Accurate monitoring and control of water flow during the treatment process are essential for optimizing chemical dosing, ensuring compliance, and reducing treatment costs. ZINACA’s advanced flow meters, including electromagnetic and turbine flow meters, have been successfully implemented in electroplating wastewater treatment systems to improve process efficiency and monitoring accuracy.

In this application, ZINACA’s electromagnetic flow meters were used for accurate measurement of influent and effluent wastewater flow, while turbine flow meters monitored the flow of chemicals used in the treatment process.

Client Requirements: The electroplating facility required a flow measurement solution that could:

· Accurately monitor the flow of wastewater influent and effluent to ensure effective treatment.

· Measure the flow of treatment chemicals to optimize chemical usage and reduce waste.

· Integrate seamlessly with the existing control systems to enable real-time monitoring and data reporting.

· Operate reliably under harsh chemical and flow conditions, with minimal maintenance.

ZINACA Flow Meter Solutions:

1. Electromagnetic Flow Meters for Wastewater Flow Measurement: ZINACA’s Electromagnetic Flow Meters are ideal for measuring the flow of wastewater, particularly in applications where the fluid is conductive, such as electroplating wastewater. These meters offer highly accurate, non-invasive measurements of flow, even in the presence of suspended solids or chemicals. Because they have no moving parts, they require minimal maintenance and can handle the fluctuations in flow rates typical of wastewater treatment systems. Their accuracy is critical for ensuring that the right volume of wastewater is treated and discharged, helping the plant meet environmental regulations.

2. Turbine Flow Meters for Chemical Dosing Monitoring: ZINACA’s Turbine Flow Meters were used to monitor the flow of chemicals during the electroplating wastewater treatment process. These meters provide high accuracy and repeatability, even under fluctuating flow conditions. By accurately measuring the flow of chemicals like coagulants or flocculants, the turbine flow meters help optimize chemical dosing, ensuring that only the required amounts of chemicals are used. This results in reduced chemical waste, lowered treatment costs, and more effective wastewater treatment.

3. Real-Time Monitoring and Integration: ZINACA’s flow meters provide real-time flow data that can be integrated into the plant’s control system. This integration allows operators to track the flow of wastewater and chemicals at all stages of the treatment process. With accurate, real-time data, operators can make informed decisions, adjust the treatment process as needed, and ensure that the system operates within desired parameters. The ability to generate real-time reports also ensures compliance with environmental regulations.

4. Durability in Harsh Conditions: ZINACA’s flow meters are designed to withstand the harsh chemical environments typically found in electroplating wastewater treatment systems. The electromagnetic flow meters, for example, are resistant to corrosion and can measure wastewater with high concentrations of suspended solids or acidic/alkaline conditions. The turbine flow meters are made from materials that are resistant to chemical corrosion, ensuring long-term reliability and performance in challenging environments.

Solution and Results:

The implementation of ZINACA’s electromagnetic flow meters and turbine flow meters in the electroplating wastewater treatment plant resulted in significant improvements in the treatment process. The electromagnetic flow meters provided highly accurate flow measurements of influent and effluent wastewater, ensuring that the correct volumes of water were treated in compliance with regulatory standards.

The turbine flow meters enabled precise monitoring of chemical dosing, allowing the facility to reduce chemical waste and lower treatment costs. The ability to adjust chemical dosing based on real-time flow data optimized the treatment process, making it more efficient and cost-effective.

Furthermore, the seamless integration of the flow meters into the plant’s control systems provided operators with real-time data and reporting capabilities, improving decision-making and ensuring continuous regulatory compliance.

Customer Feedback:

“ZINACA’s flow meters have made a noticeable difference in our wastewater treatment process. The electromagnetic flow meters provide the accuracy we need for wastewater flow measurement, while the turbine flow meters help us optimize chemical dosing. The real-time data integration with our control systems has improved our efficiency and reduced costs. We are also pleased with the durability of the equipment, as it has held up well in our harsh operating environment.”

Conclusion:

The successful implementation of ZINACA’s electromagnetic and turbine flow meters in the electroplating wastewater treatment system showcases the company’s ability to provide reliable and precise flow measurement solutions for industries facing complex water treatment challenges. By offering accurate monitoring of wastewater and chemical flows, ZINACA helps electroplating facilities optimize their treatment processes, reduce operational costs, and ensure compliance with environmental regulations.
